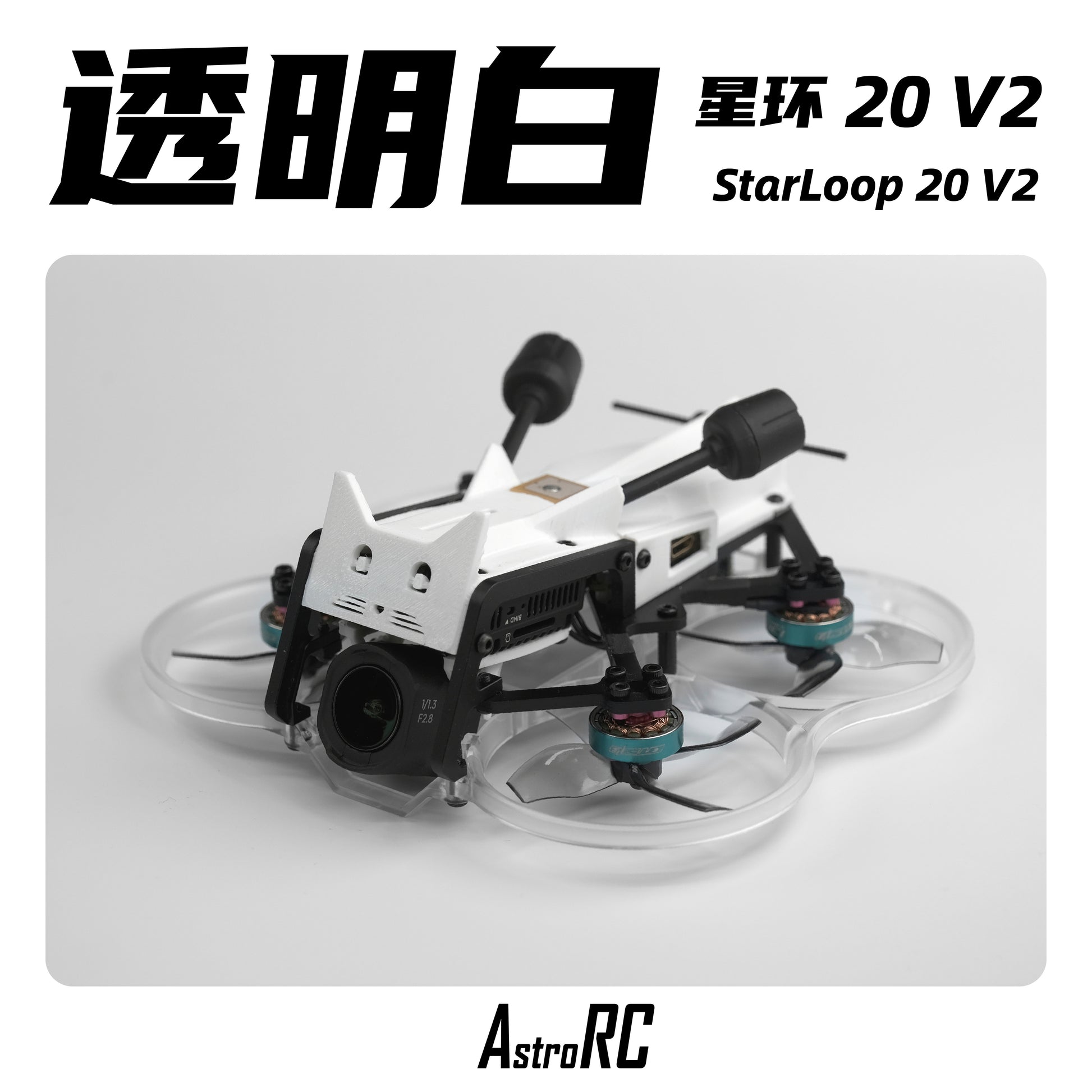

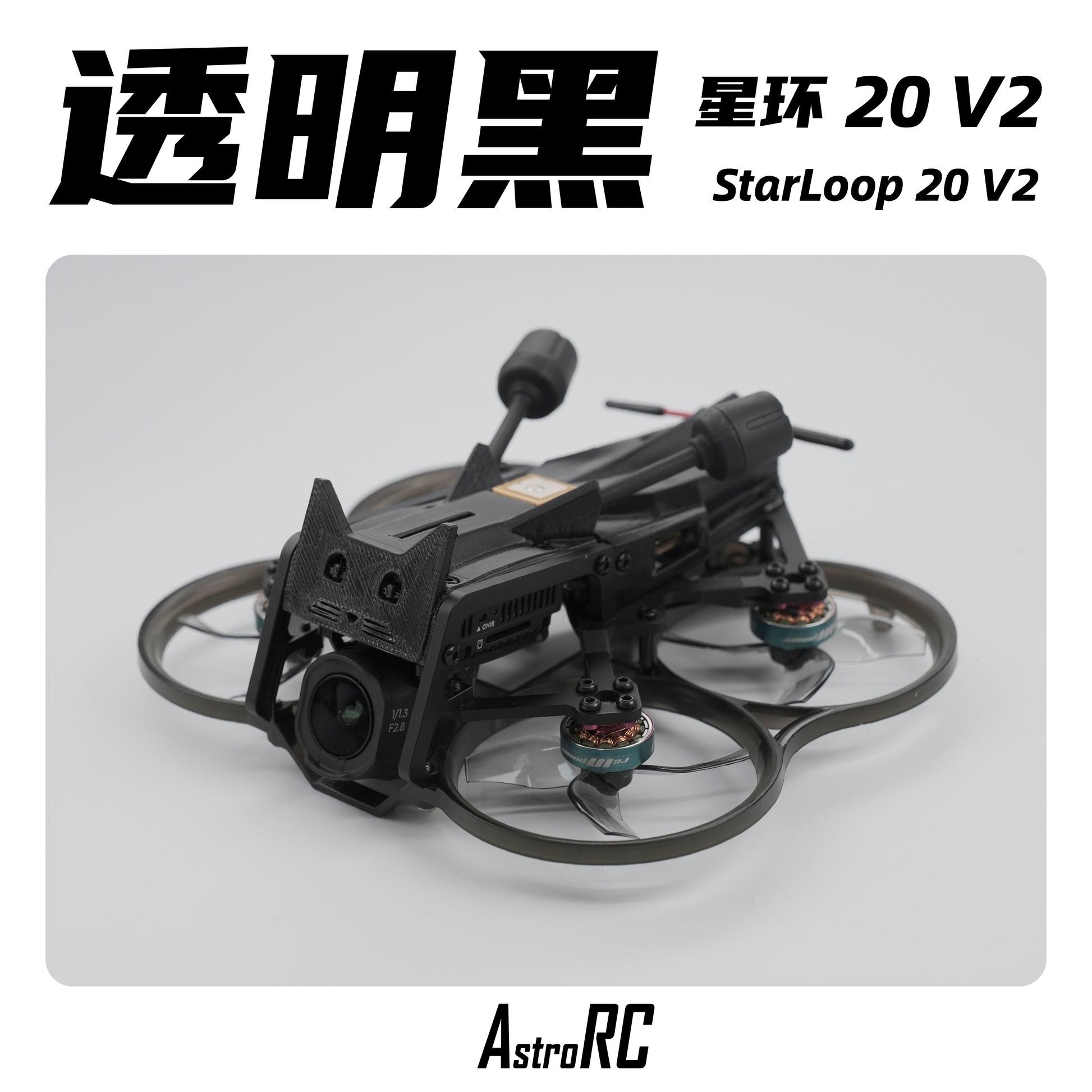

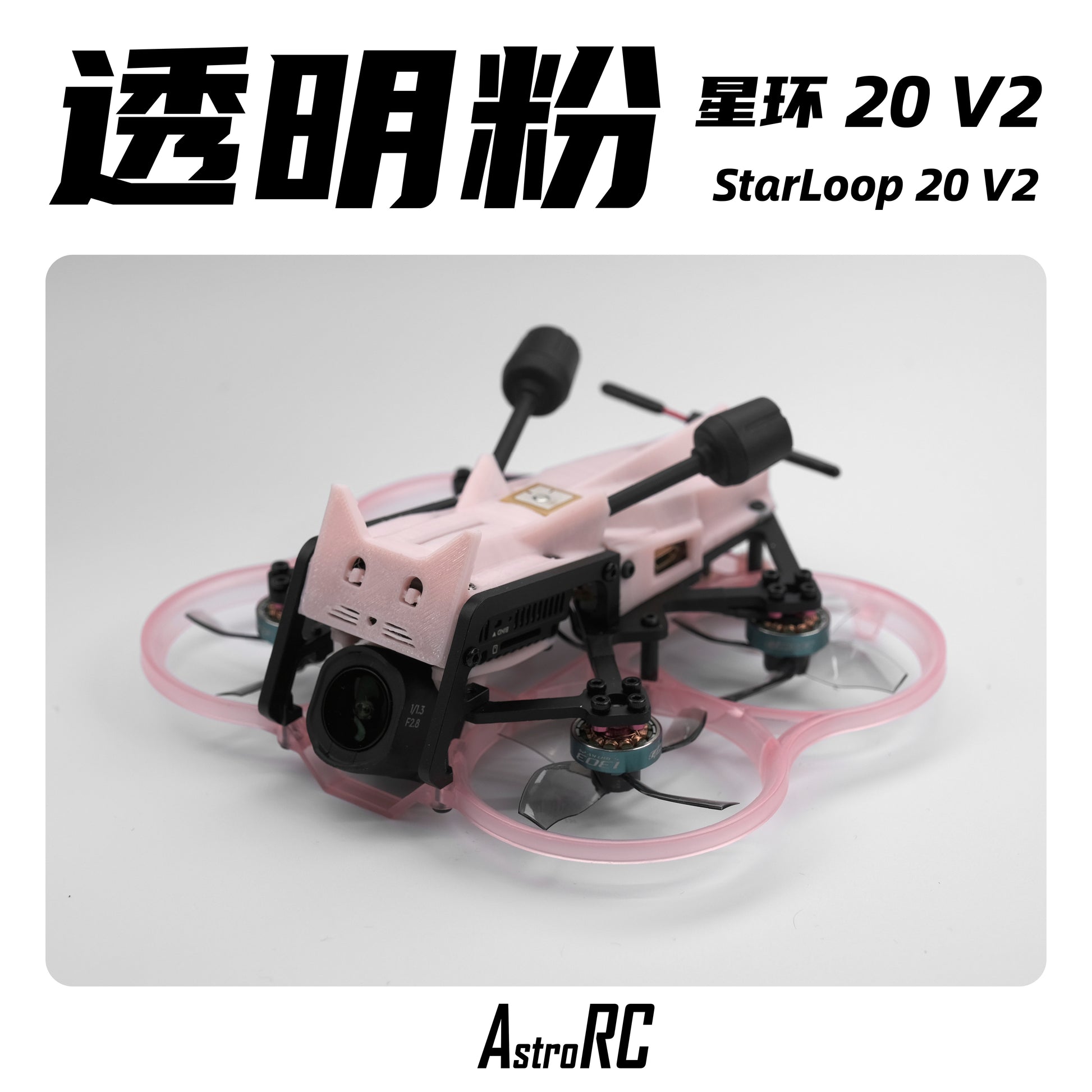

[PNP/BNF] AstroRC Starloop 20V2 Cat Drone Tinywhoop

PNP vs. BNF Key Difference

The primary distinction between PNP (Plug-N-Play) and BNF (Bind-N-Fly) models is whether they include:
✓ Pre-installed ELRS Receiver (BNF only)
✓ Pre-installed VTX System (BNF only)

All other components (FC/ESC/motors) are identical in both versions.

Global Shipping Policy

1. United States Service:
✓ Door-to-Door Delivery
✓ Duties & Taxes Included (No hidden fees)
✓12days UPS/FedEx/USPS

2. Other Regions:
• Partial Frame Disassembly (for safer transit)
• Minimal Reassembly Required ( no soldering)
• All electrical connections pre-soldered( We provide step by step video)

We're New to International Shipping – Ask Us Anything! （Online Chat)

Key Features

1. Independent Video Transmission Module
   Easy to install and maintain, with 7075 aluminum alloy protective plates on both sides to ensure module safety. Compatible with DJI O4 Pro, O4, Vista, analog VTX, Snail 4K, and other FPV video systems.

2. Unique AIO Layout
   AIO positioned above the battery with a low center of gravity, delivering improved flight handling and making advanced maneuvers easier to perform.

3. Dedicated Battery Compartment
   The battery has its own protected mounting bay to help prevent damage from impacts.

4. Vibration-Damping Camera Mount
   Ensures stable DVR and video recording performance for DJI O4 and similar digital video systems.

5. Integrated Electronics Board
   Combines buzzer, receiver, capacitor, XT30 connector, and BEC into a single PCB—simplifying soldering and optimizing wire routing.

6. StarLoop LED Strip Mounting
   Built-in LED channels inside the prop guard allow installation of COB LED strips for a more personalized and visually striking in-flight appearance.

StarLoop 20 V2 — Specifications

• Model: StarLoop 20 V2

• Wheelbase: 95 mm

• Mounting Holes: 25.5 × 25.5 mm

• Battery Connector: XT30 (4S)

Flight Controller: JHEF405 AIO

• MCU: STM32F405

• IMU: ICM42688-P

• ESC: 40A Bluejay, 48 kHz

• Blackbox: 8 MB

Motors: RCinpower 1303, 5380 KV
Propellers: 2" Gemfan D51 (4-blade)
Receiver Options: ELRS 2.4 GHz / None
Video System Options: DJI O4 Pro / DJI O4 / None
GPS: BZ121 / None

Weight: 130 – 140 g
Recommended Battery: 4S 500–650 mAh

• Battery Bay Size: 21 × 71 mm

Flight Time: 5 – 7 minutes (actual time may vary depending on flight intensity)
