【Frame Only 3.0inch frame l Airtank 30inch Cinewhoop Frame FPV drones

Features 1

Ultra-small axi to axi（110mm) design. The axi to axi is even smaller than some 2.5-inch drones.

This results in smaller size and lighter weight.(Less than 250g with battery is possible )

An experience close to that of an aircraft with no protective ring structure

Features 2

All-carbon fiber body

7070 aluminum alloy modular image transmission system protection compartment

AstroR's unique electrical connection board structure brings a better installation experience

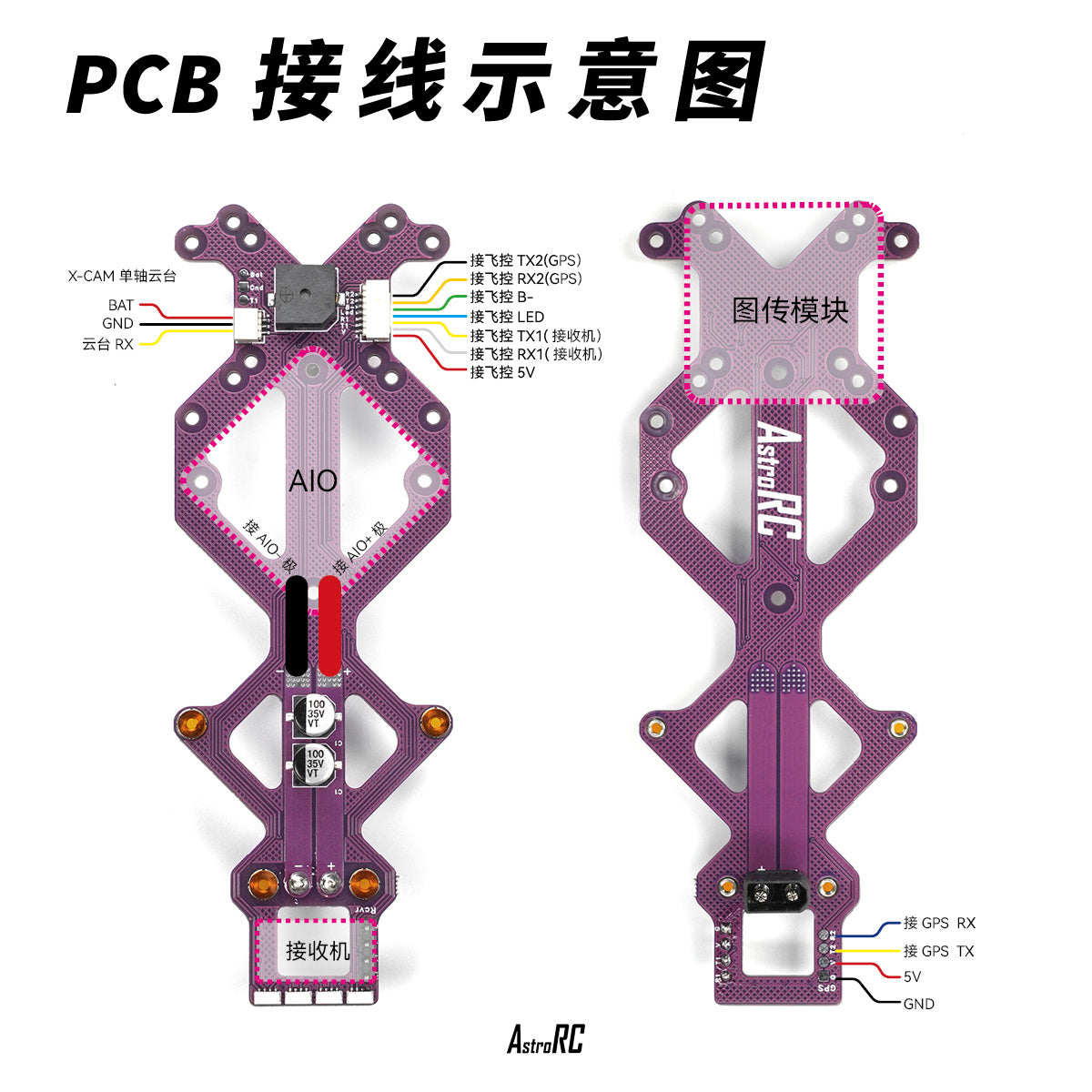

Special connection plate system

Connect FC via 7P cable to achieve connection between BB, LED, receiver, GPS and flight control, X-cam gimble , greatly reducing the number of flight cables of the aircraft.

It is also part of the structure

Features 3

HD image transmission lens gimbal with shock-absorbing structure.

Compatible with X-CAM single-axis gimbal system

Details

Weight ：： 78g 3 inch
motor : 9/12mm
BB: On board ,inlcuded
LED: On board, included
Power supply interface type： On board , XT30
FC support: 25.5 X 25.5 AIO 4-6S
VTX : Most 25.5/20 Fixing VTX module
Camera: 19/20 mm Cam
Other: Support Single Axis gimble

Airtank30 Assembly Guide

https://www.youtube.com/watch?v=kpMyReySwE8

Airtank30 Build Specifications

Motor-to-Motor Distance: The Airtank30 features an ultra-small motor-to-motor distance of 110mm, which is even smaller than some 2.5-inch drones. This results in a smaller sizeand lighter weight, with the possibility of being less than 250g with a battery.

Weight: The weight of the Airtank30 is approximately 78g for the 3-inch frame.

Motor: The motor mounting holes are compatible with both 9mm and 12mm motors.

Battery: The Airtank30 supports 4S and 6S batteries, with a specific update for 6S powerand 12mm motor holes.
Propellers: The build is designed for 3-inch propellers.
Power Distribution: The Airtank30 has an onboard power supply interface type of XT30.
Flight Controller (FC):The frame supports a 25.5 X 25.5 AlO 4-6S flight controller.
Video Transmission (VTX): The VTX mounting hole is compatible with most 25.5/20 fixingVTX modules  , and it is also compatible with DJl O3 Air Unit.
Camera:The frame supports 19/20mm cameras.
Gimbal: The build includes an HD image transmission lens gimbal with a shock-absorbing structure, compatible with X-GAM single-axis gimbal system. Materials and Construction: The Airtank30 features an all-carbon fiber body and a 7070 aluminum alloy modular image transmission system protection compartment. lt alsoincludes AstroR's unique electrical connection board structure for a better installation experience.
Special Connection Plate Svstem: The frame has a special connection plate svstem thatconnects the FC via a 7P cable to achieve connection between BB, LED, receiver, GPS and flight control, X-cam gimbal, greatly reducing the number of flight cables of the aircraft.

This build is designed for high-performance FPV drone racing and provides a compact and lightweight solution for those looking to push the limits of their drone's performance. The integration of the DJl 03 Air Unit for video transmission ensures high-quality, low-latencyvideo feed, which is crucial for FPV racing.
