AstroRC

75mm frame V2 | CarbonFly75 1.6 inch TinyWhoop Carbonfly series PC version

75mm frame V2 | CarbonFly75 1.6 inch TinyWhoop Carbonfly series PC version

Regular price $7.50 USD
Regular price Sale price $7.50 USD
Sale Sold out
propeller guard material
Color

AstroRC Carbonfly  75

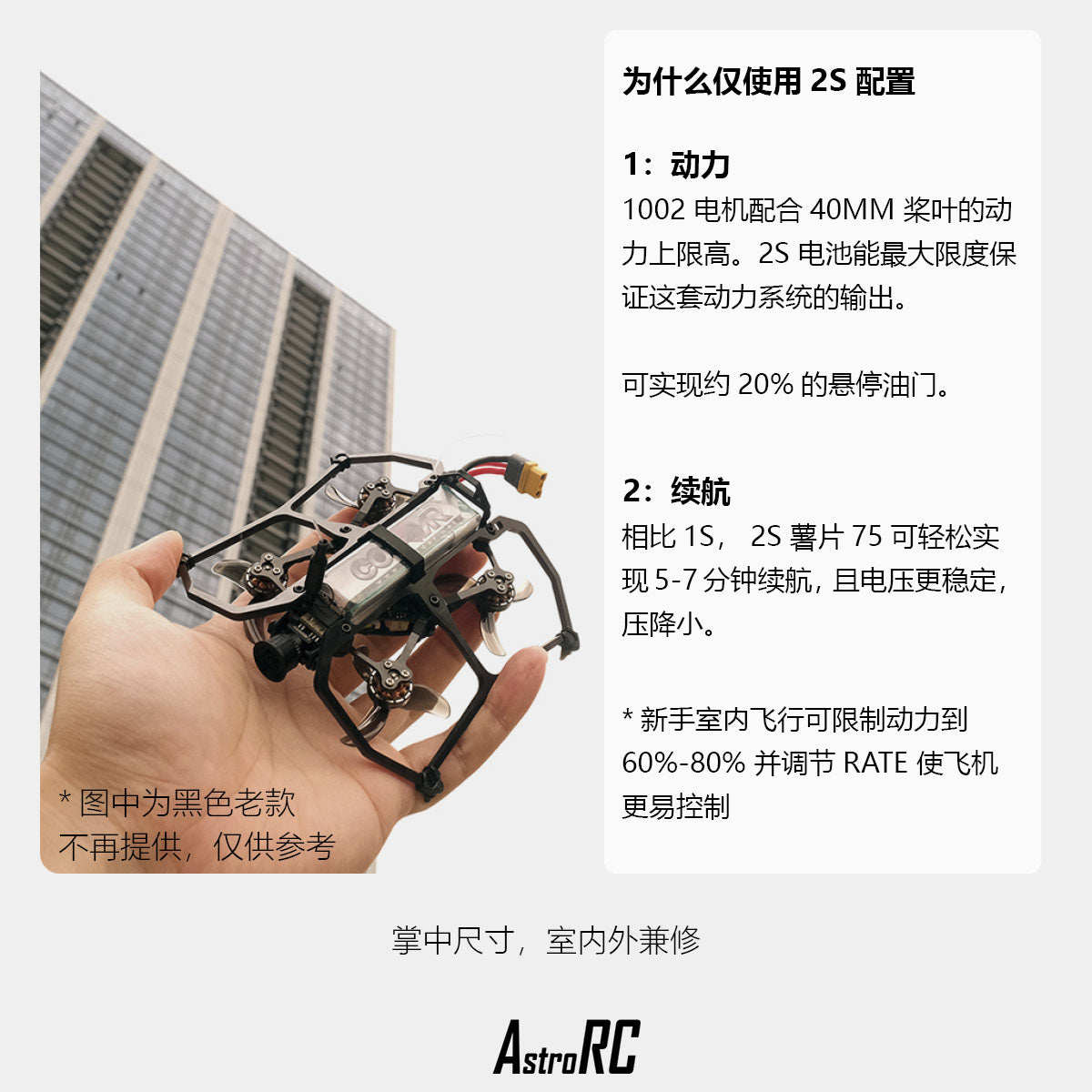

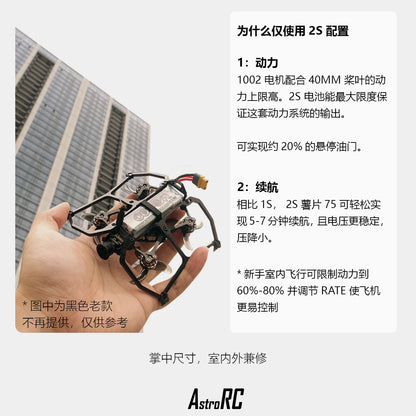

Design for   tiny whoop system  use 1S/2S battery ,recomand 2S



From a designer's point of view, I recommend using a PC protective ring and 2S electrical equipment.

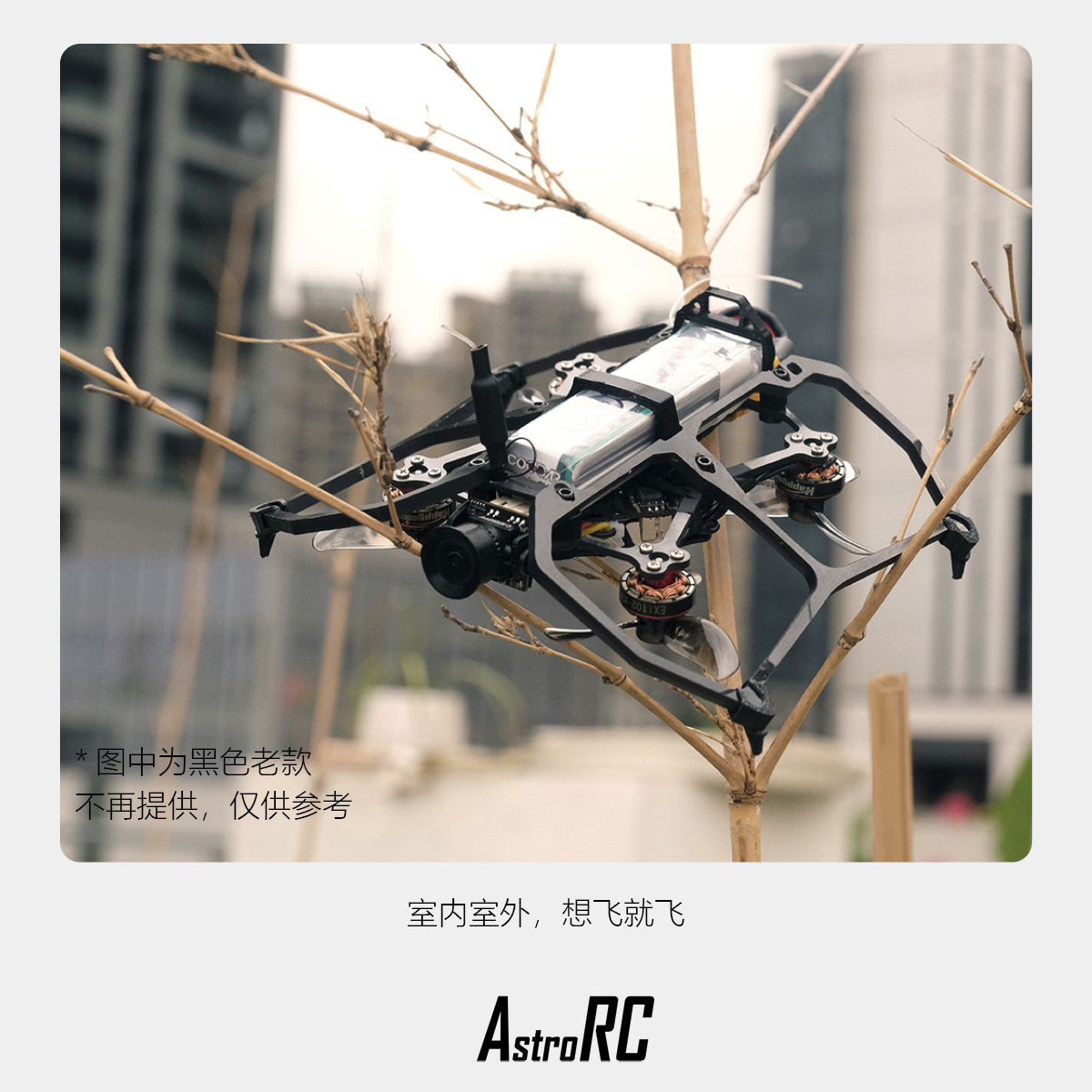

Being able to experience a very strong power limit makes TINYWHOOP competent even outdoors.

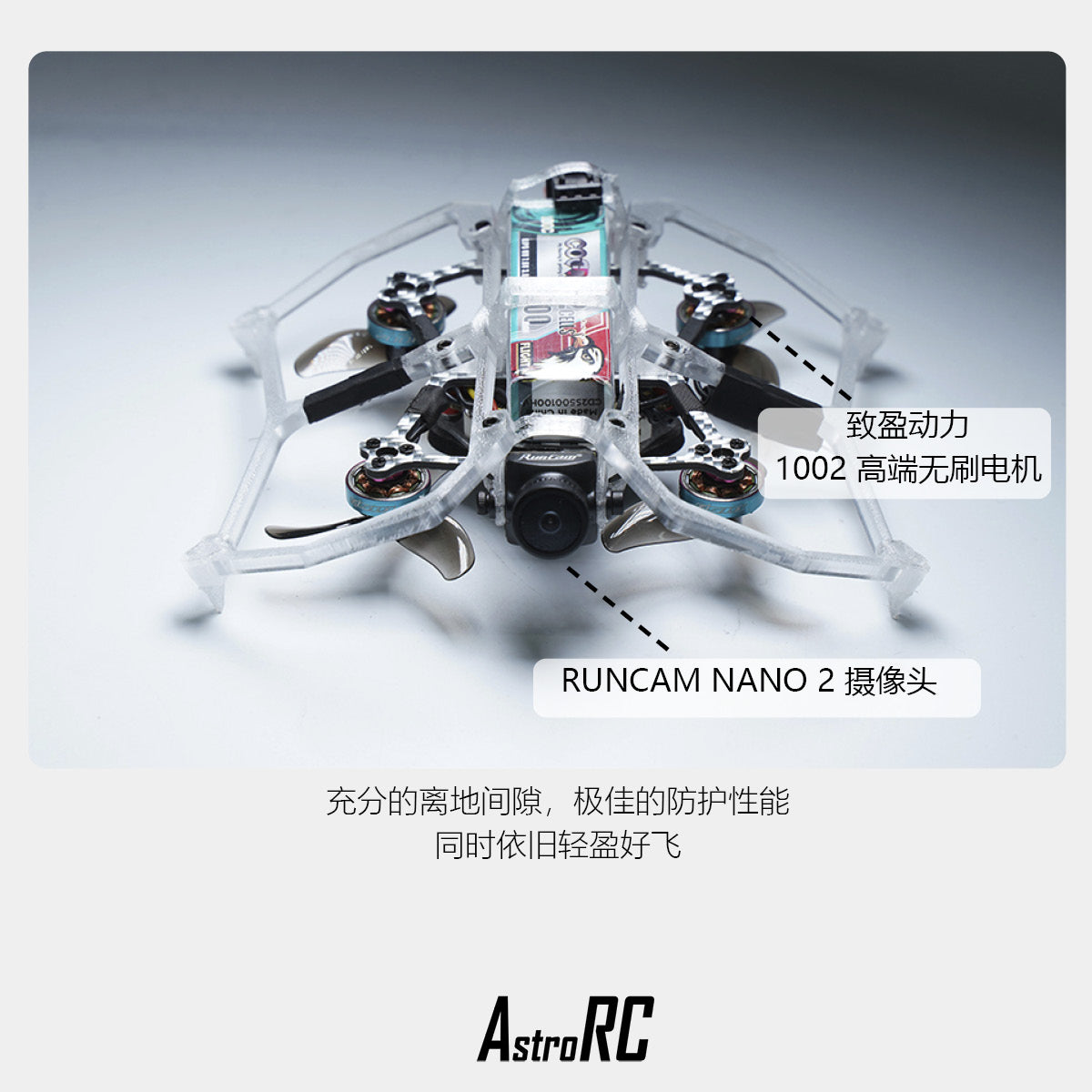

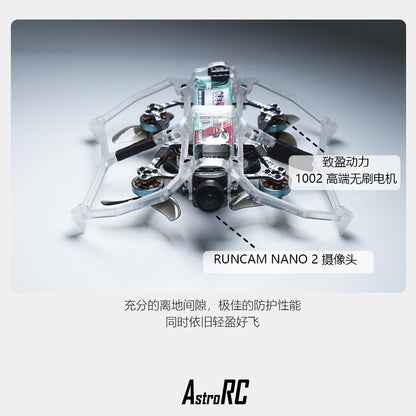

Recommended motor with micro 1002/1102 13500kv or so
Used with 5IN1 AIO

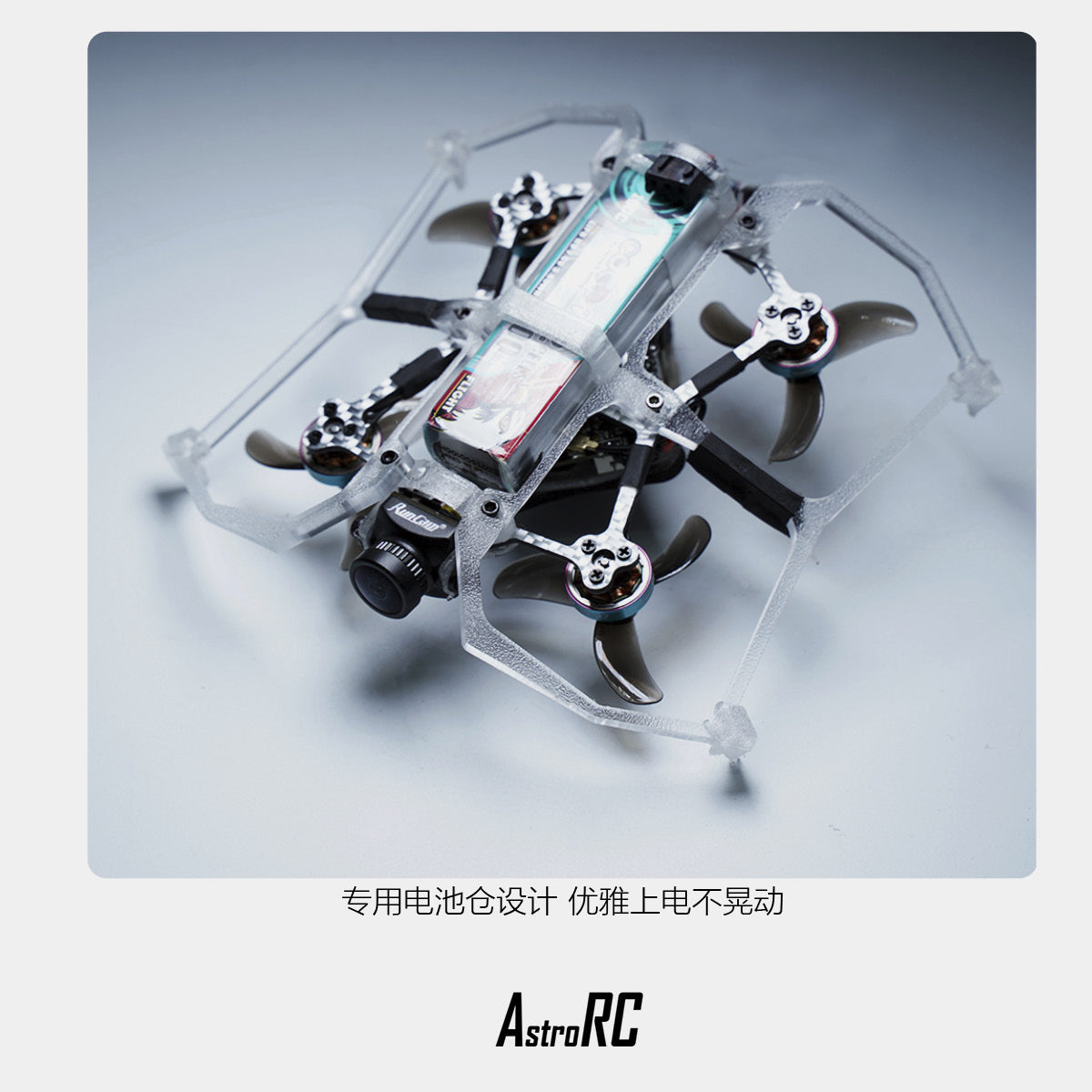

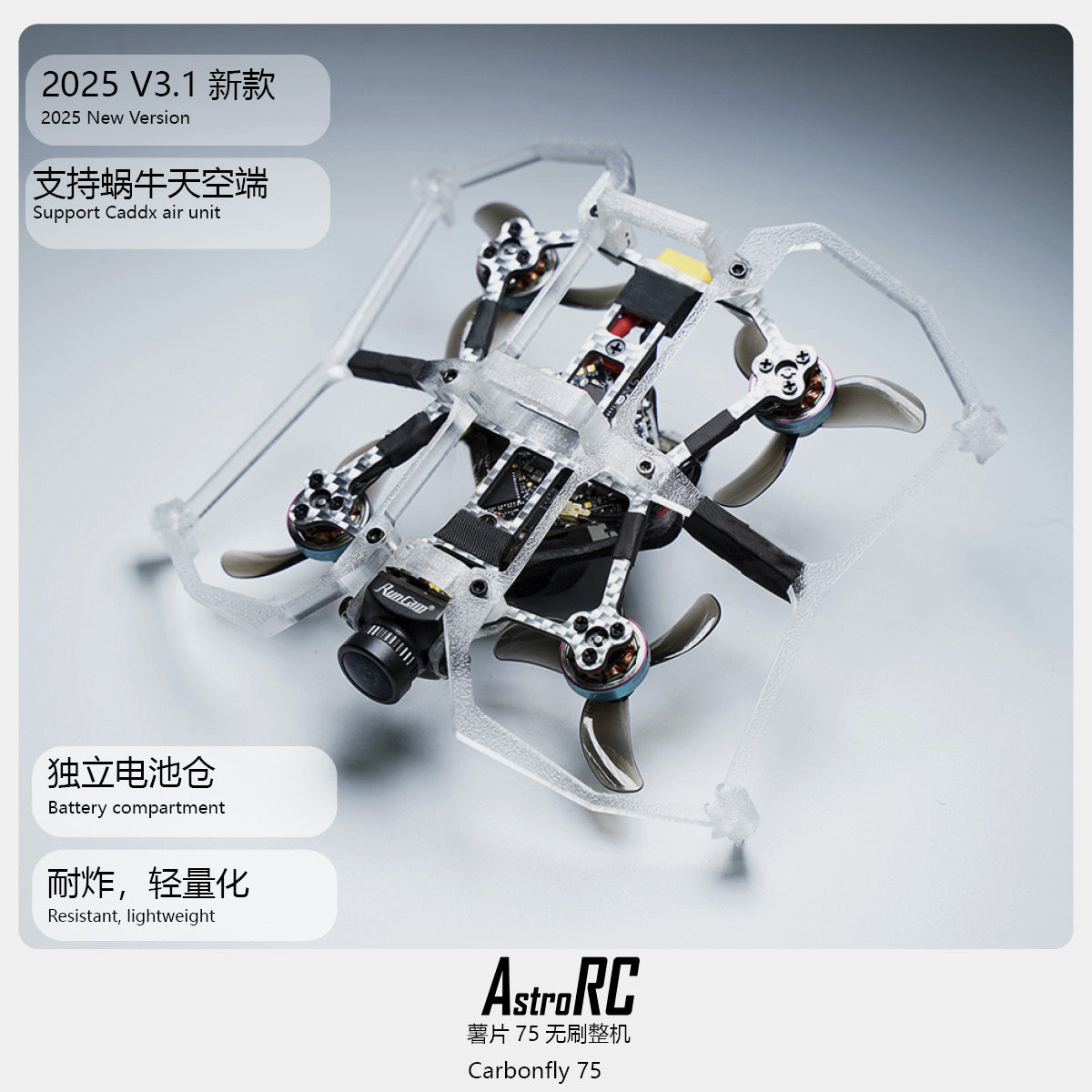

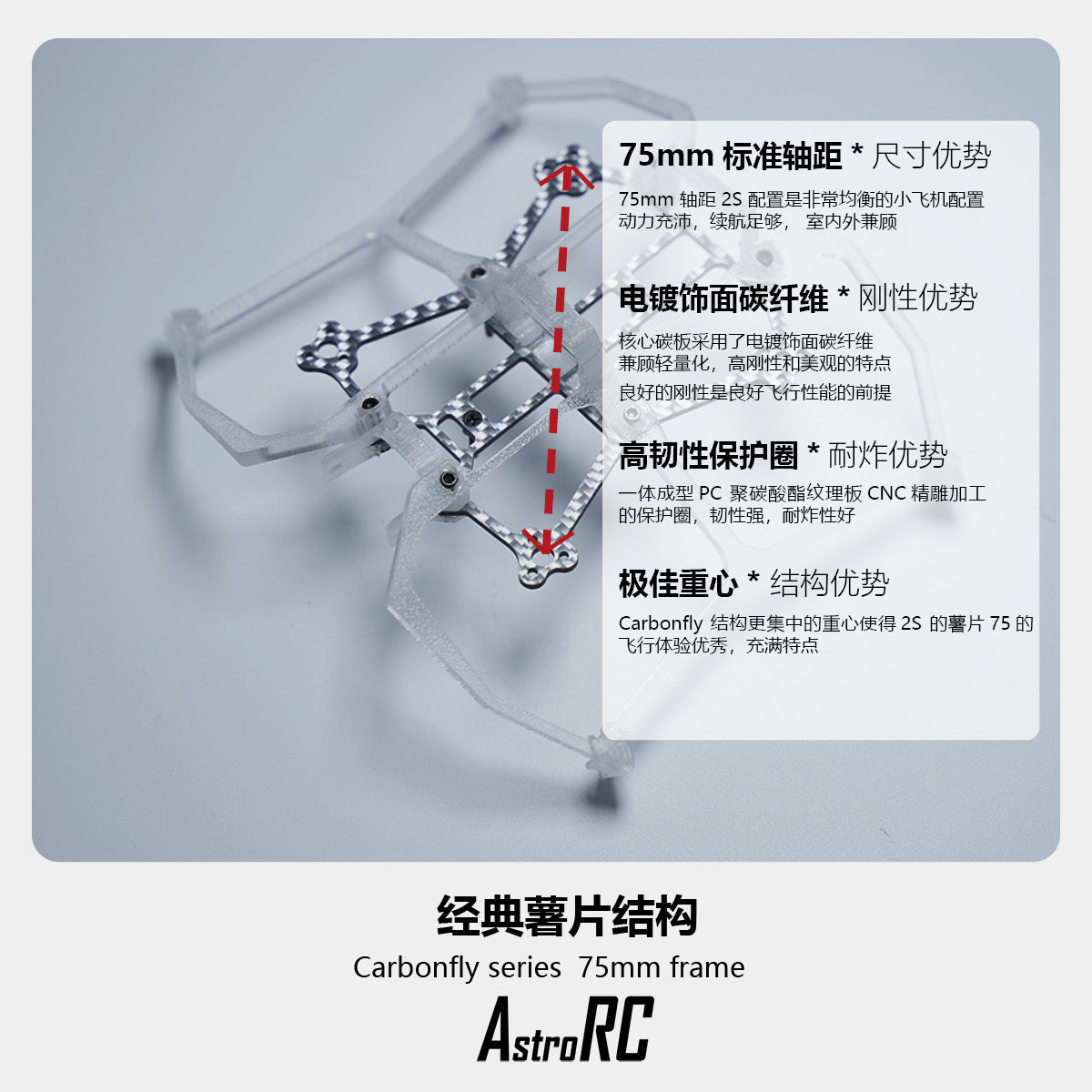

Compared with competitors of the same size, the advantage of the Carbonfly 75 lies in its very strong core rigidity (the core structure is carbon fiber instead of plastic), and the inverted motor + dedicated battery compartment provides a very good center of gravity. A good center of gravity is the basis for small wheelbase aircraft to have good flight performance.



1: Full carbon structure(1s). Compared with the MOBULA7 standard version, it weighs about 2g. It adopts a MOBULA7 electric device and has a take-off weight of 27.5g.

2: Support 0802/1002 motor, support 2S battery


The carbon fiber and PC versions have the same core carbon fiber plate and the same TPU prints  (both include the prints required for 1S and 2S battery installation)



Carbonfly 75 is the simplest CarbonFly series machine, but it is my favorite. The 2S 75mm wheelbase traversing aircraft makes flying no longer a burden but an enjoyment that can be carried out at any time.

Weight reduction is particularly important on 75mm wheelbase aircraft. In order to control the weight of the 2S traversing machine to about 40 grams, Carbonfly 75 adopts a large number of weight-saving designs, including common structural screws and electrical equipment installation screws. So please strictly follow the installation instructions when installing.

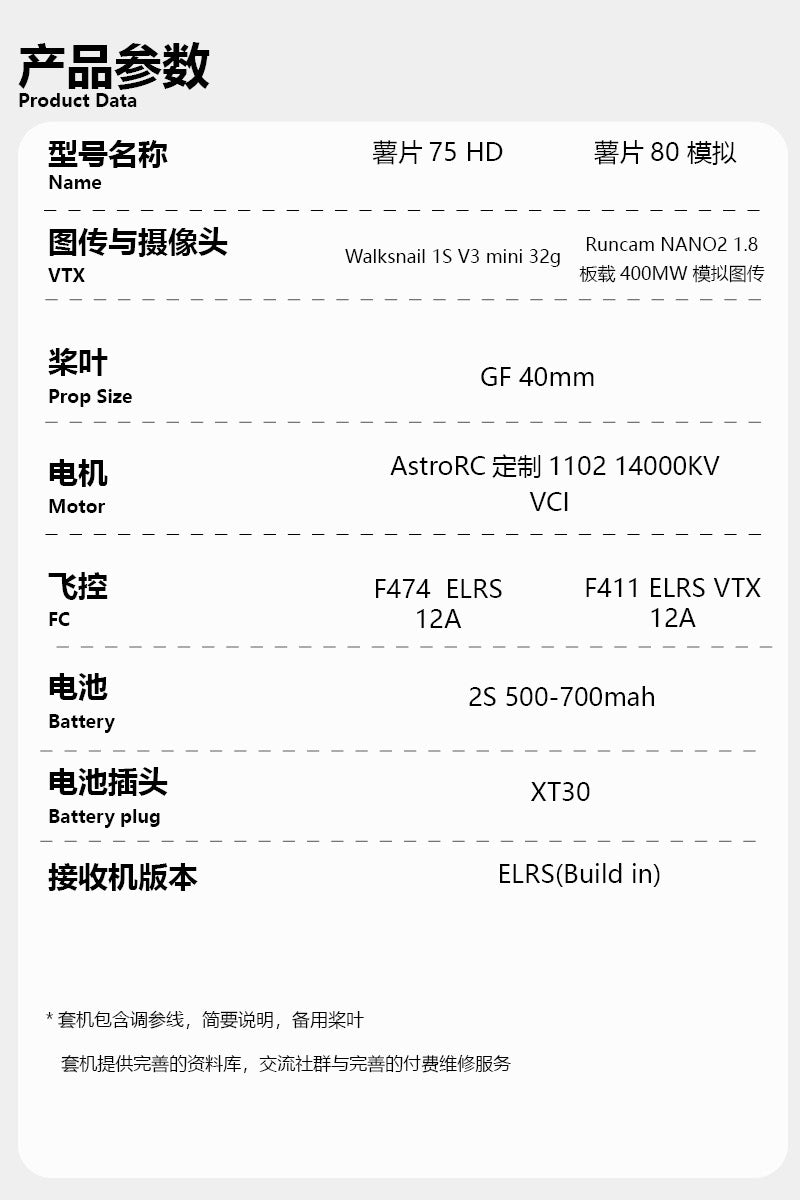

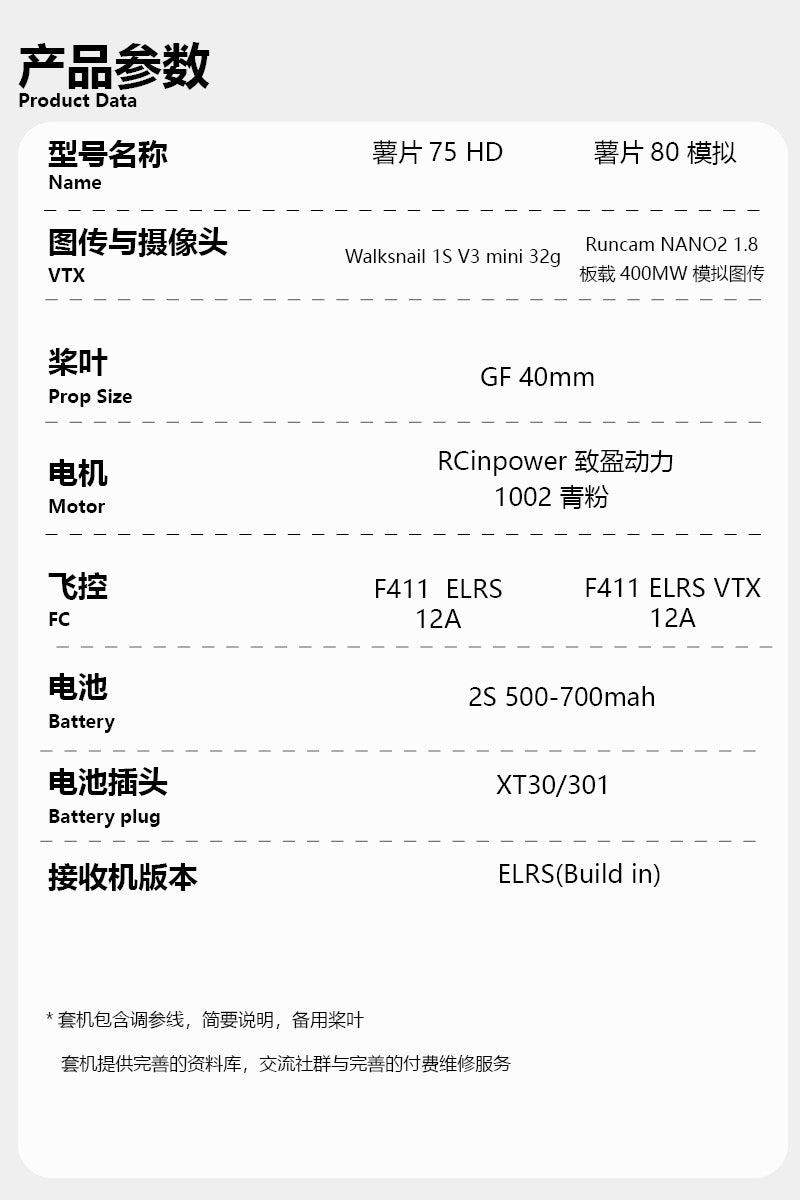

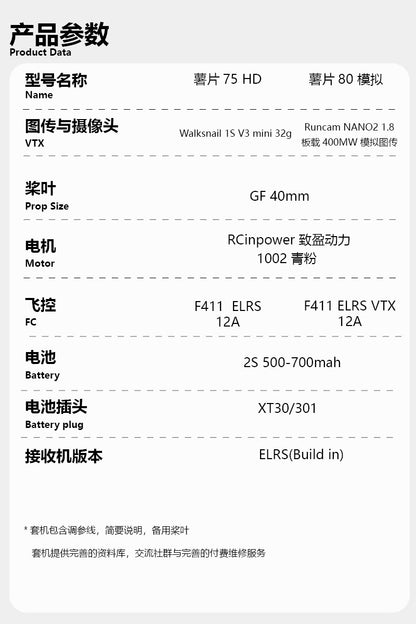

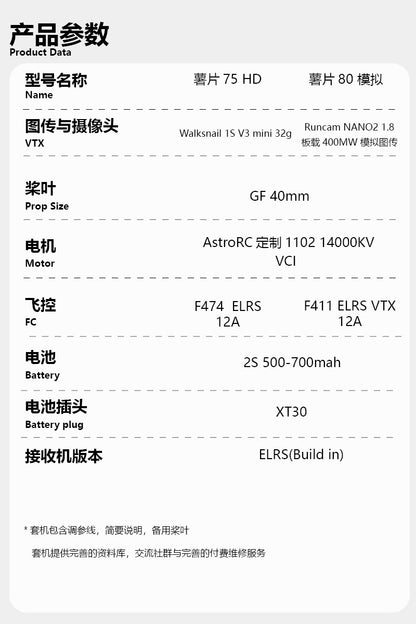

Specification

Brand: AstroRC

Model: Chips75

Motor to Motor: 75mm

Main Plate: 1.5mm T300 CarbonFiber

Bottom Plate: None

FC Mounting Hole: 25.5mm x 25.5mm

VTX Mounting Hole: None

Motor Mounting Hole: Three hole tiny motor,M1.4 Screw

FPV Camera Spacing : 18mm(Mobula7 )/ 14mm

Suitable propeller size: 1.6 inch propeller

Weight: 12.0g



Includes

1 x Main Plate 1.5mm

2 x Propeller Guard 1.5mm(Carbon)/ 3mm(PC)

1 x Set of Screws

1 x Set of 3D Printed Parts

1 x Packaging Box

1 x CreazyBee X12 5in1 Camera adapter cable
