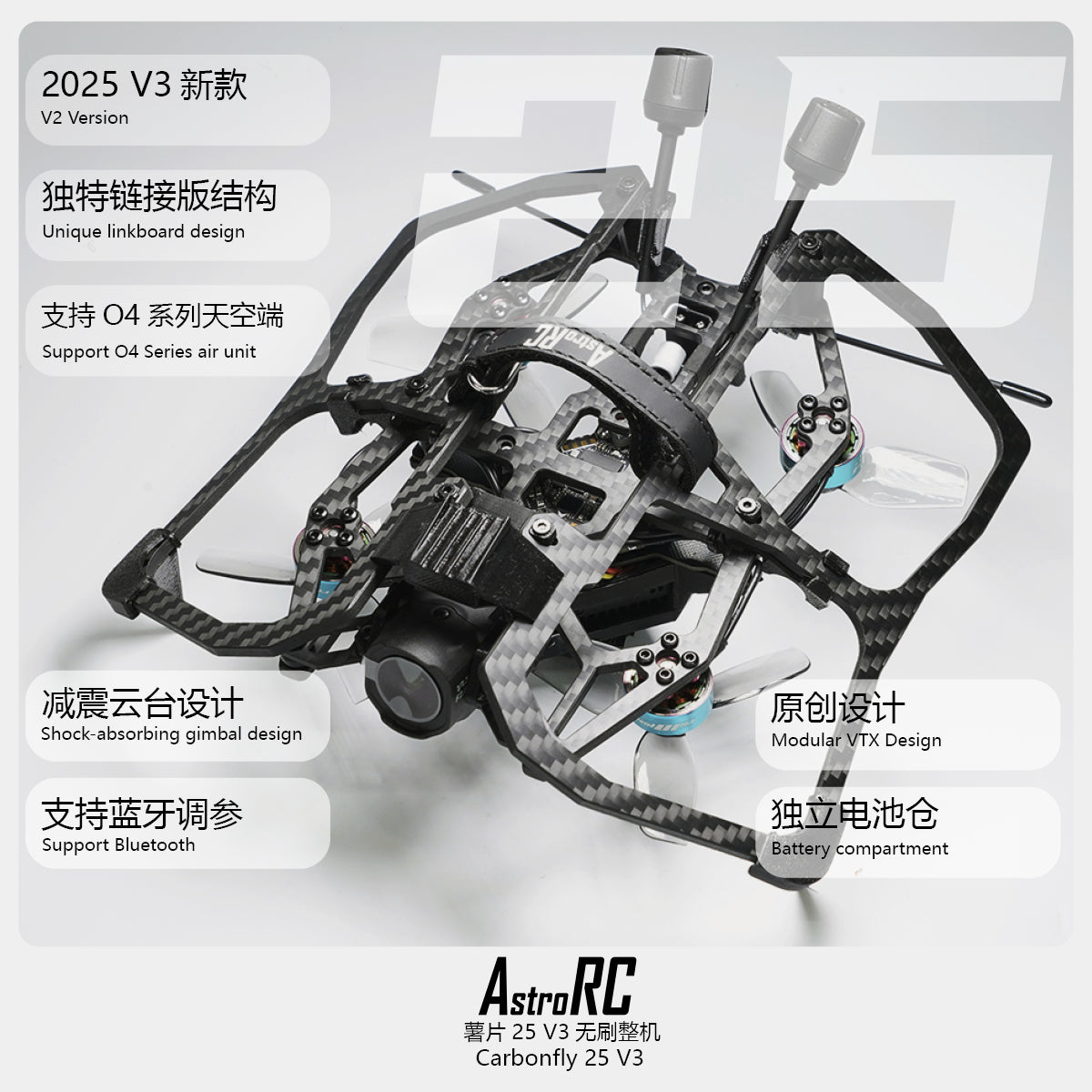

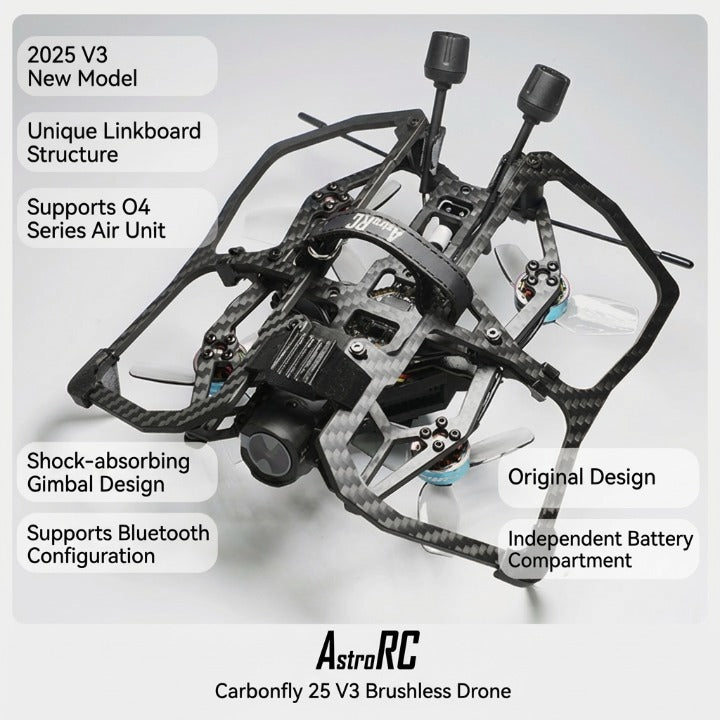

[PNP/BNF] CarbonFly25 V3 HD Cinewhoop FPV Drone 2.5 Inch

PNP vs. BNF Key Difference

The primary distinction between PNP (Plug-N-Play) and BNF (Bind-N-Fly) models is whether they include:
✓ Pre-installed ELRS Receiver (BNF only)
✓ Pre-installed VTX System (BNF only)

All other components (FC/ESC/motors) are identical in both versions.

Global Shipping Policy

1. United States Service:
✓ Door-to-Door Delivery
✓ Duties & Taxes Included (No hidden fees)
✓12days UPS/FedEx/USPS

2. Other Regions:
• Partial Frame Disassembly (for safer transit)
• Minimal Reassembly Required ( no soldering)
• All electrical connections pre-soldered( We provide step by step video)

We're New to International Shipping – Ask Us Anything! （Online Chat)

Key Features

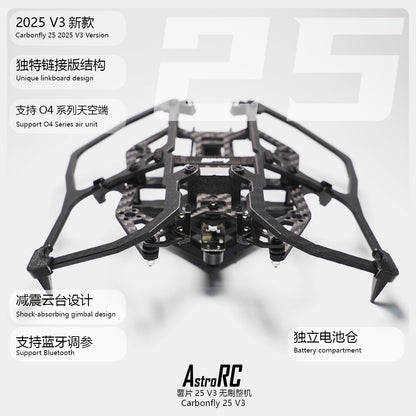

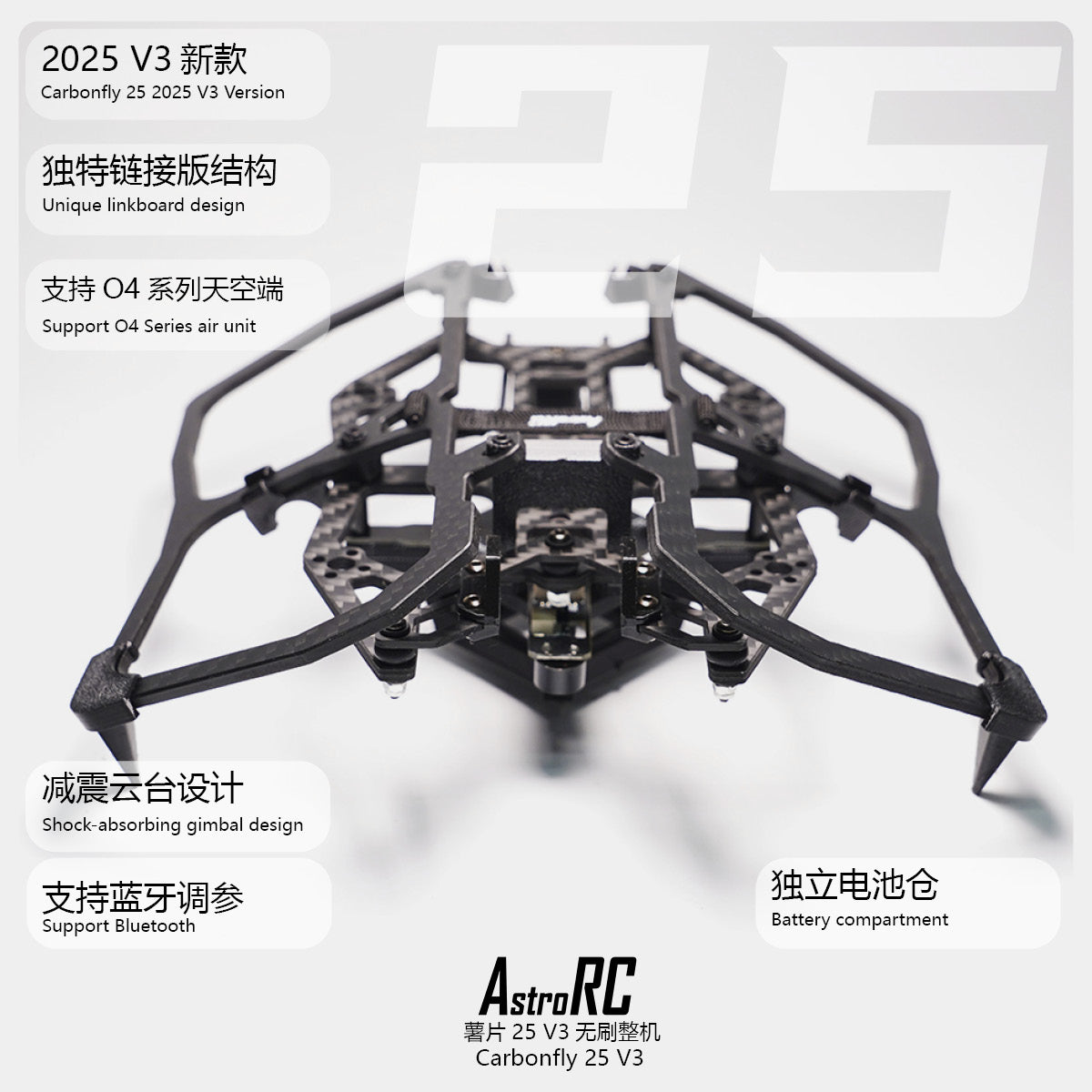

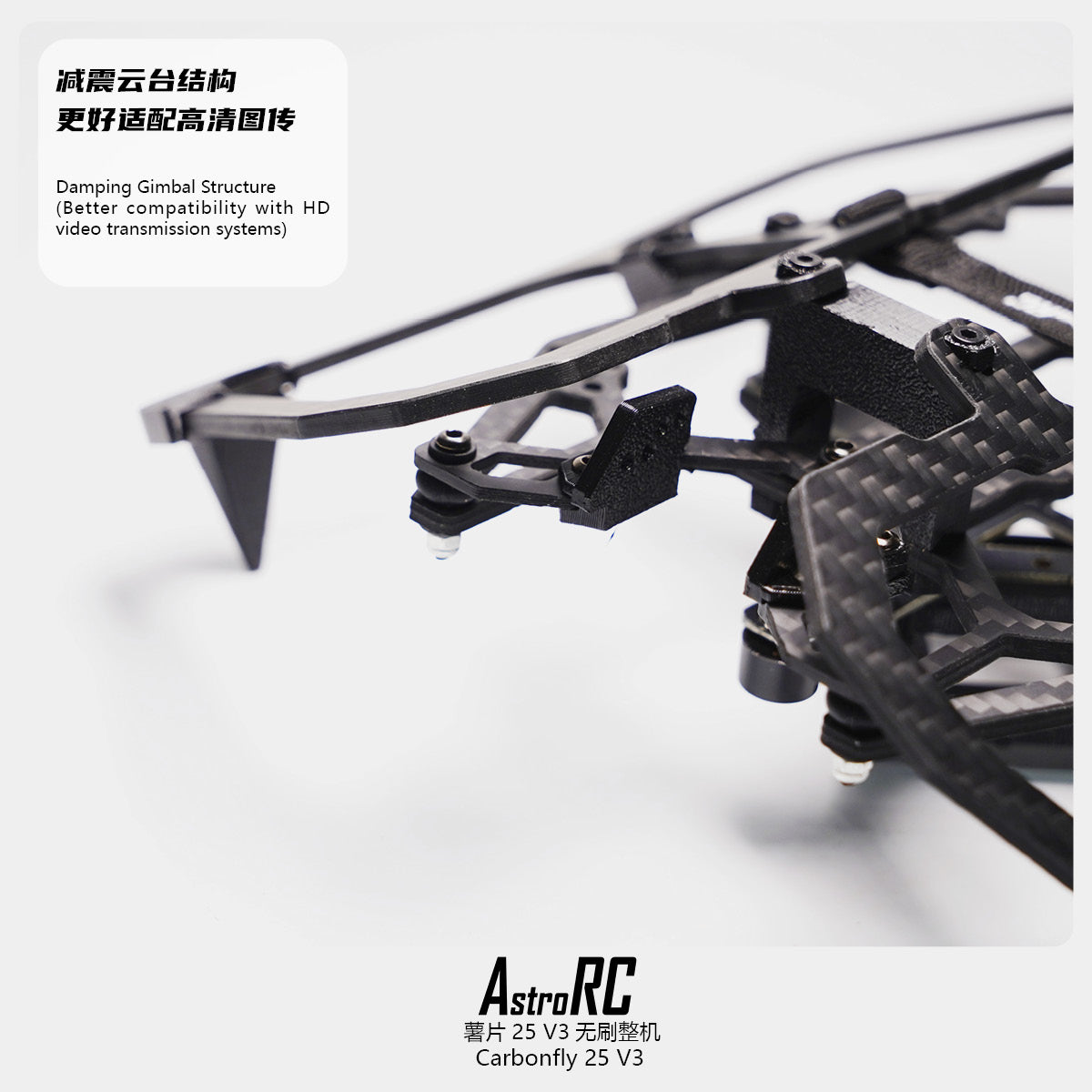

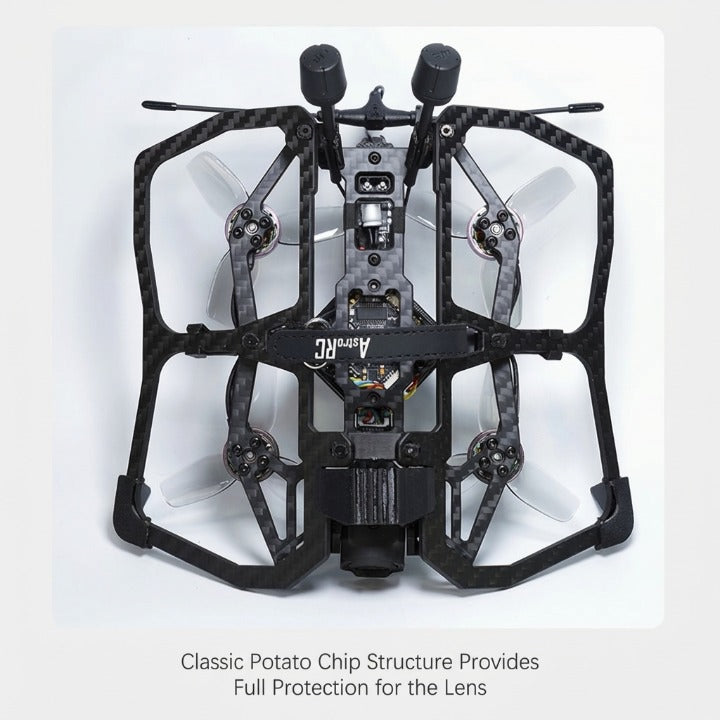

1. Multi-Functional Camera Protection Canopy
   Protects the camera lens and provides vibration damping and stabilization for DJI O4 Pro and similar FPV video systems. The interior can house a BZ121 GPS module, and the top M3 mounting holes allow for a lightweight action camera.

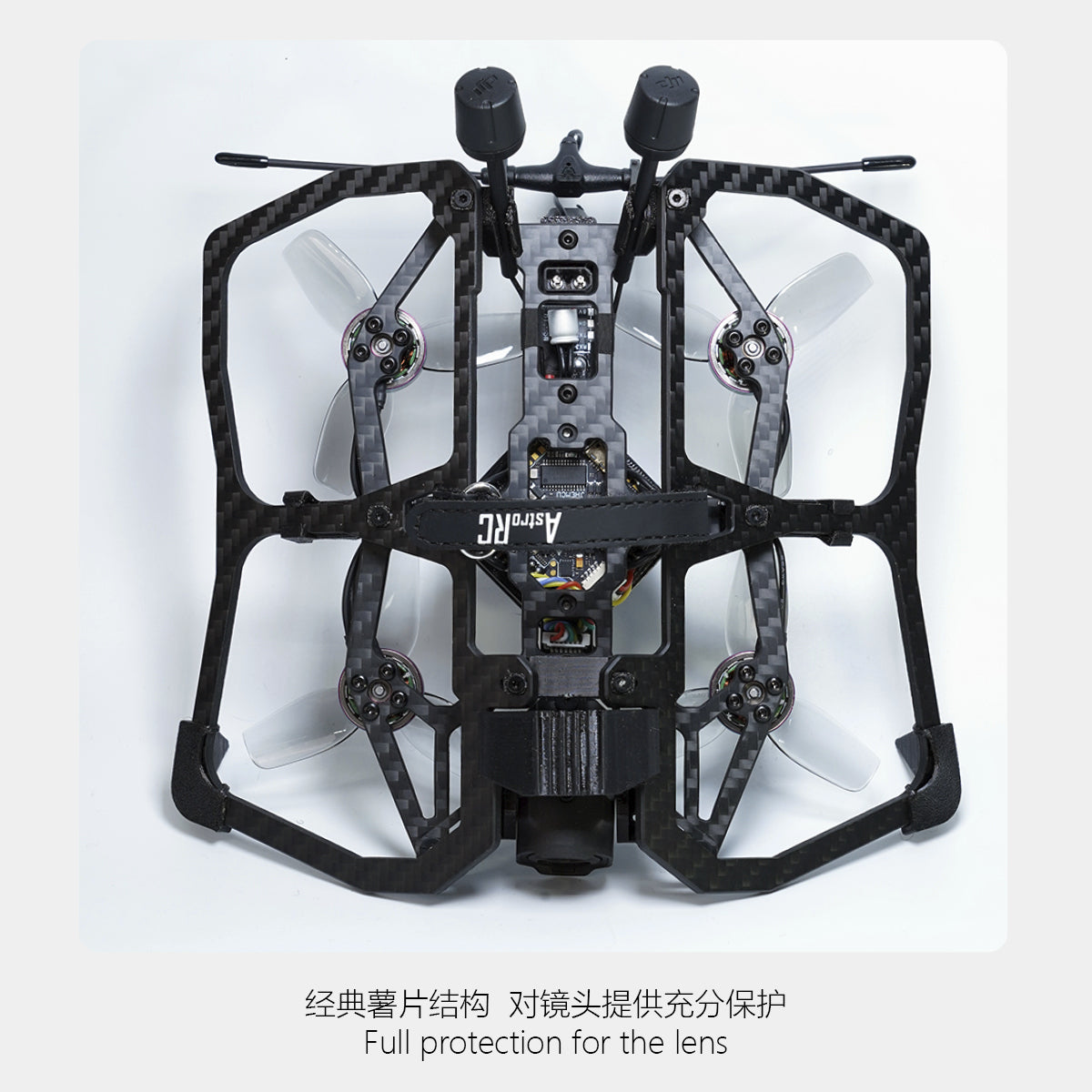

2. High-Strength Prop Guard
   Easily handles typical collisions, giving you greater confidence and peace of mind while flying.

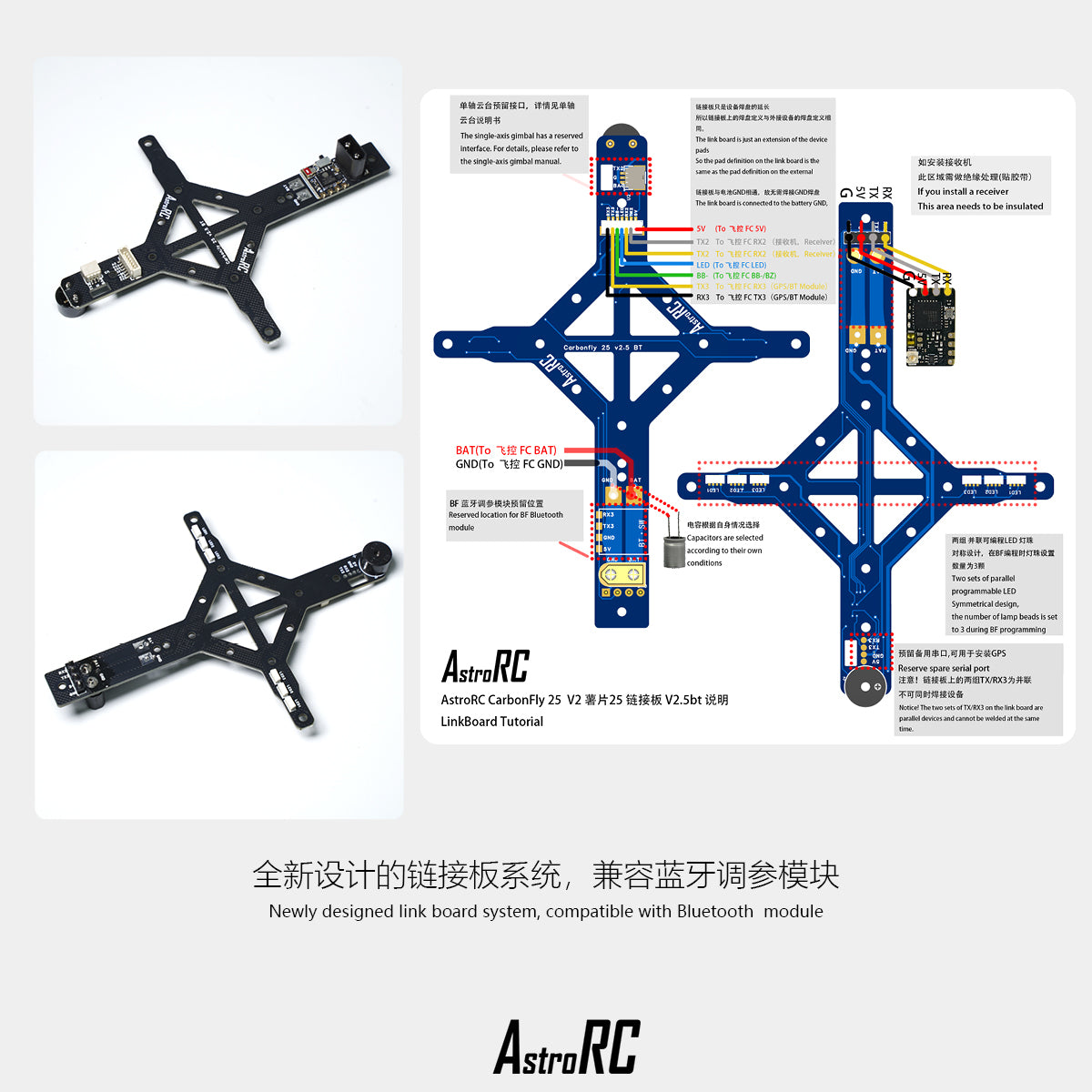

3. Integrated Electronics Board

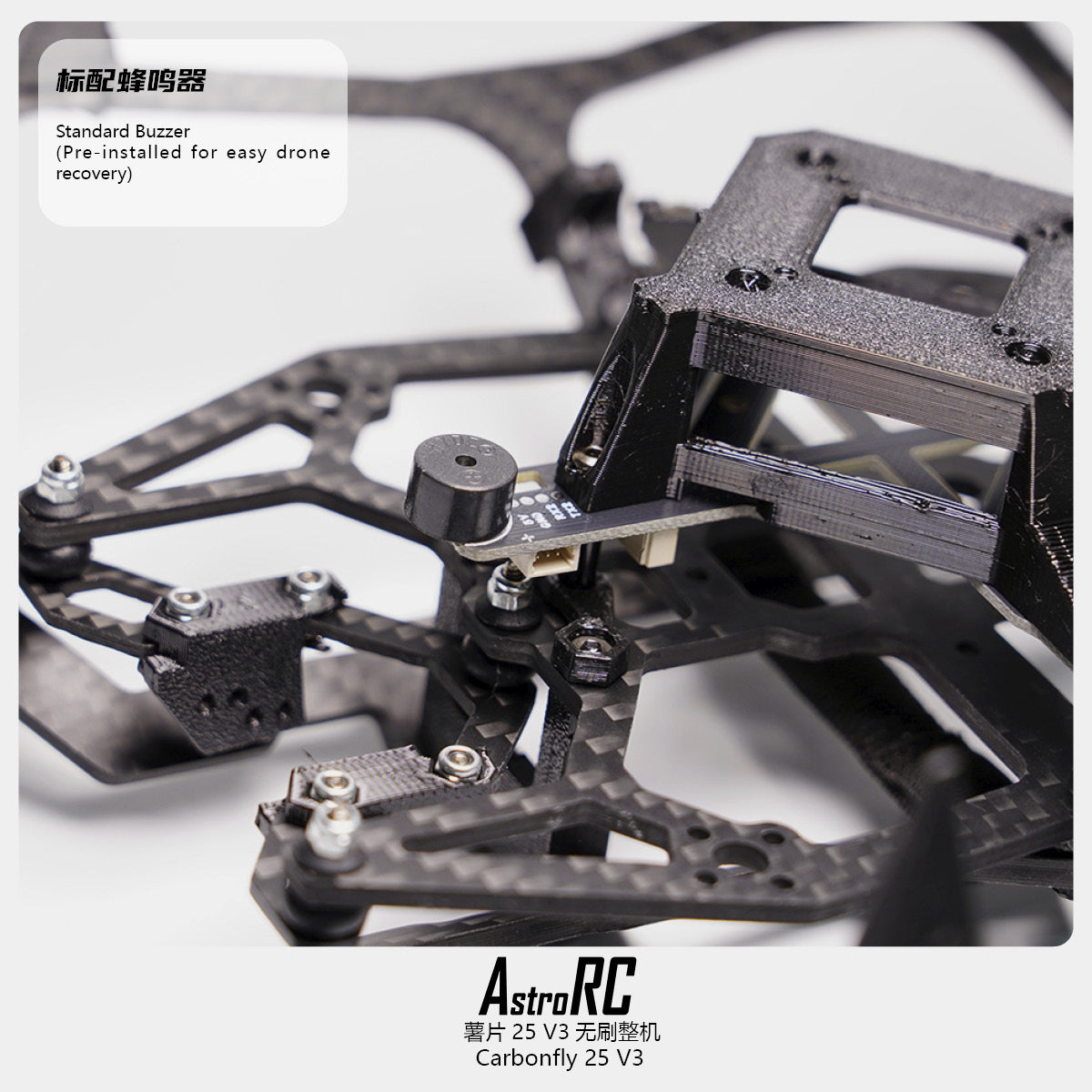

   Combines the XT30 power connector, capacitor, buzzer, receiver, and other essential FPV electronics into a single structural PCB—simplifying soldering and optimizing wire management.

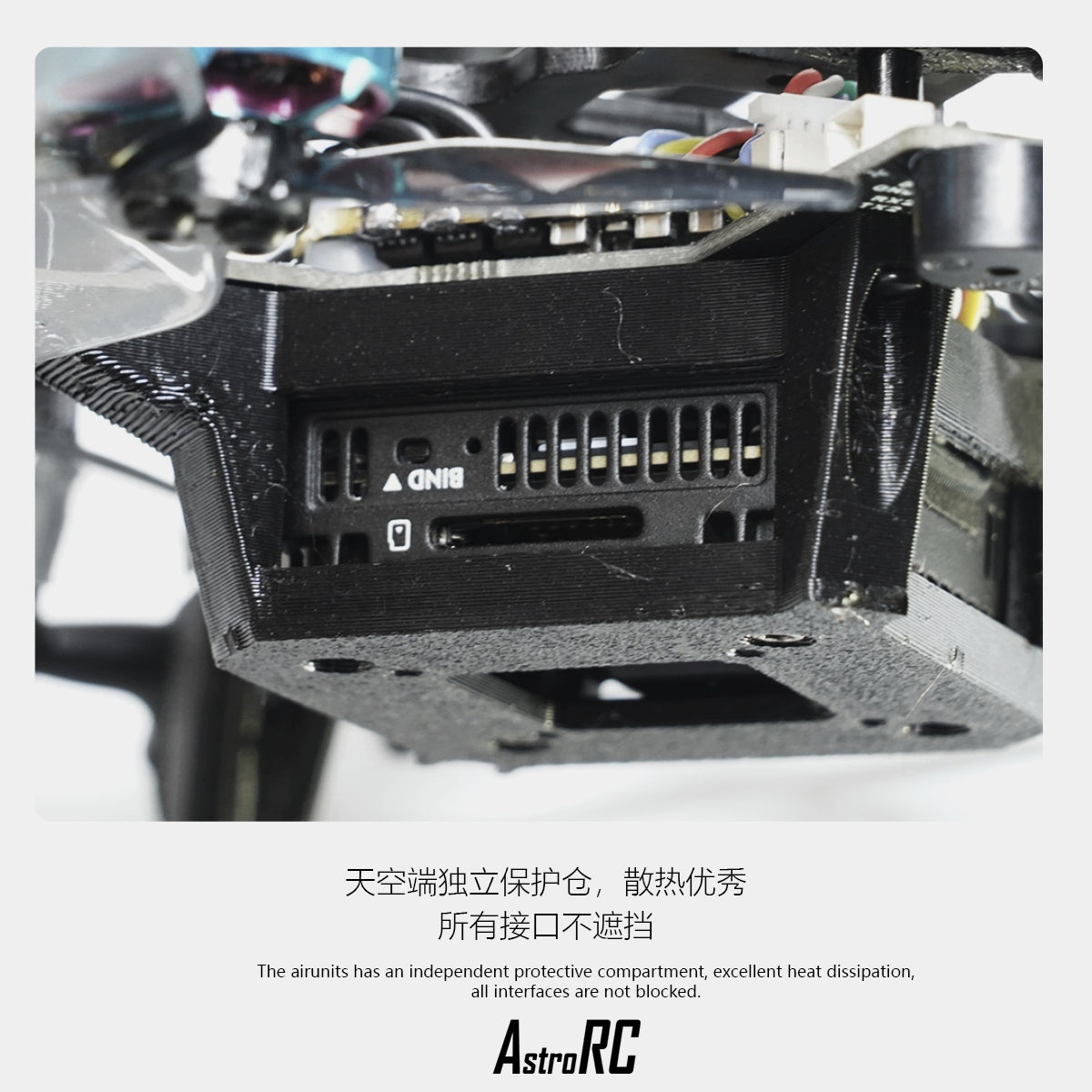

4. Modular, Detachable Structure

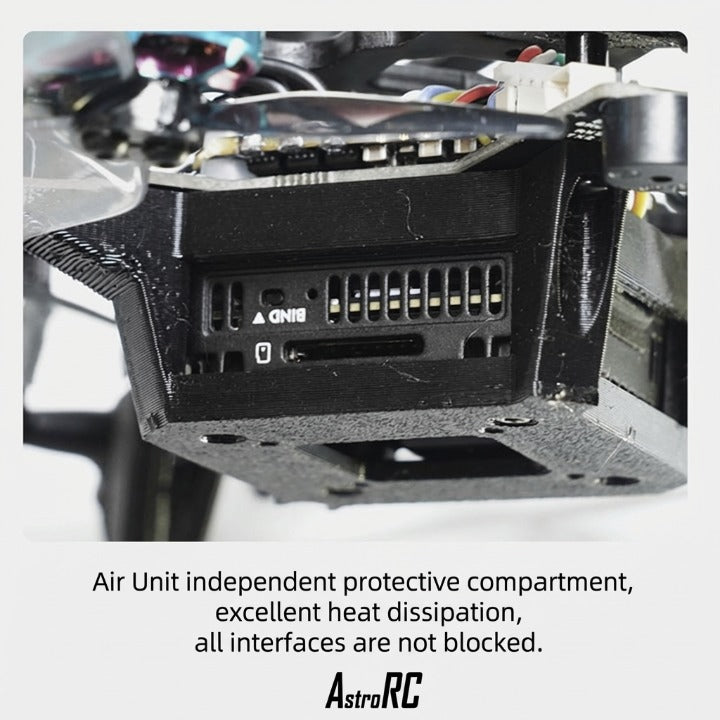

   Power system, video transmission module, and prop guard are separate units for fast and easy installation or maintenance.

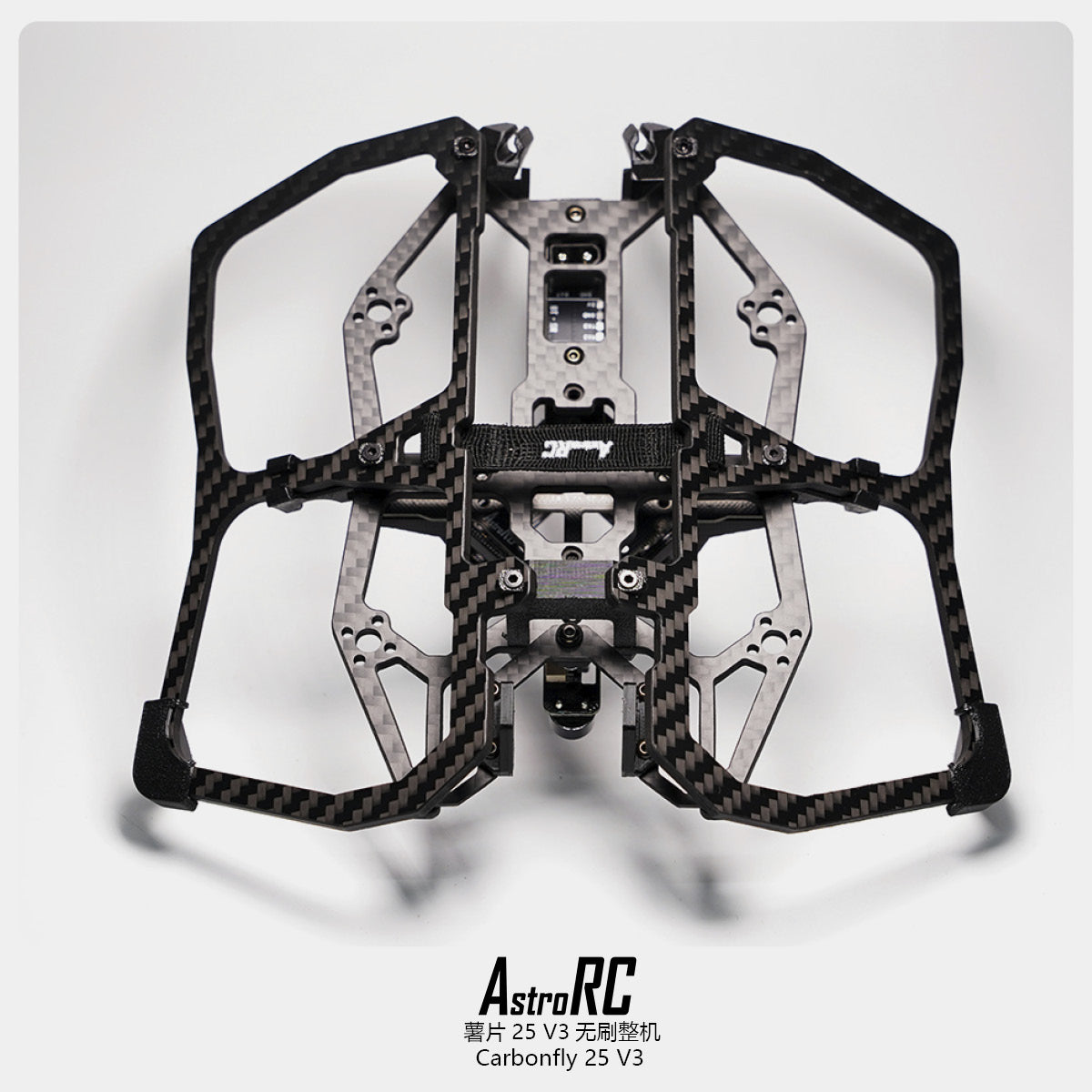

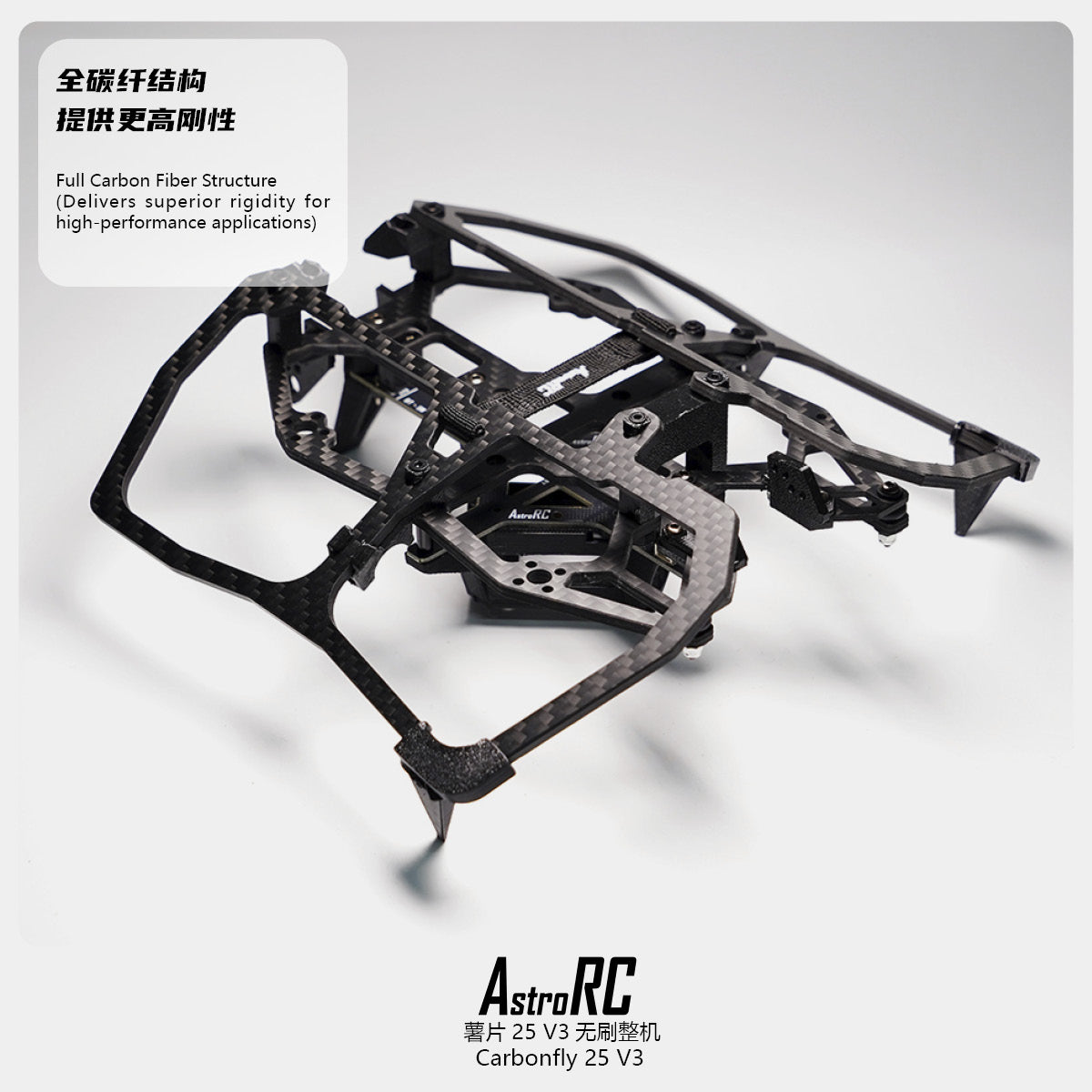

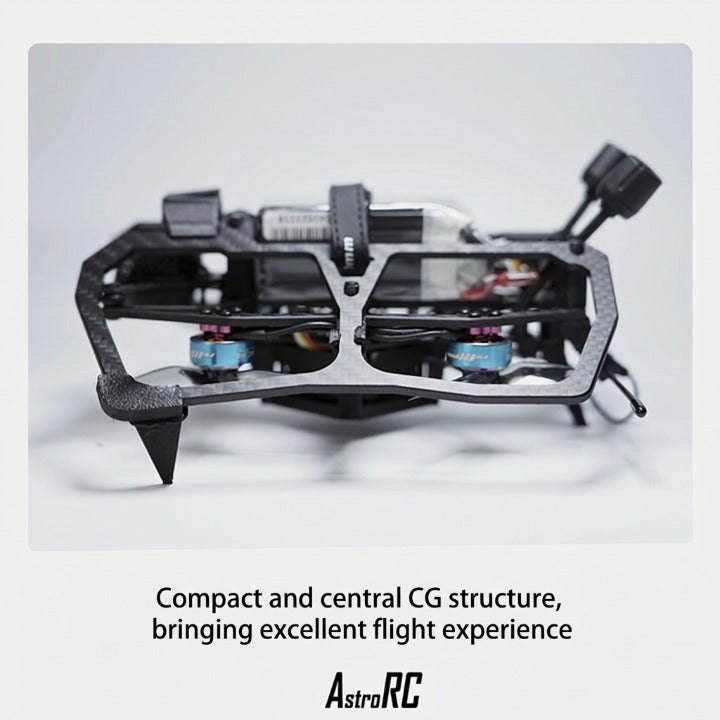

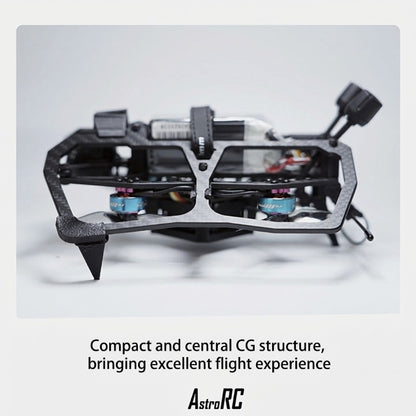

5. True-X Frame Geometry
   Balanced roll and pitch response without noticeable differences, delivering a smoother, more natural flight feel.

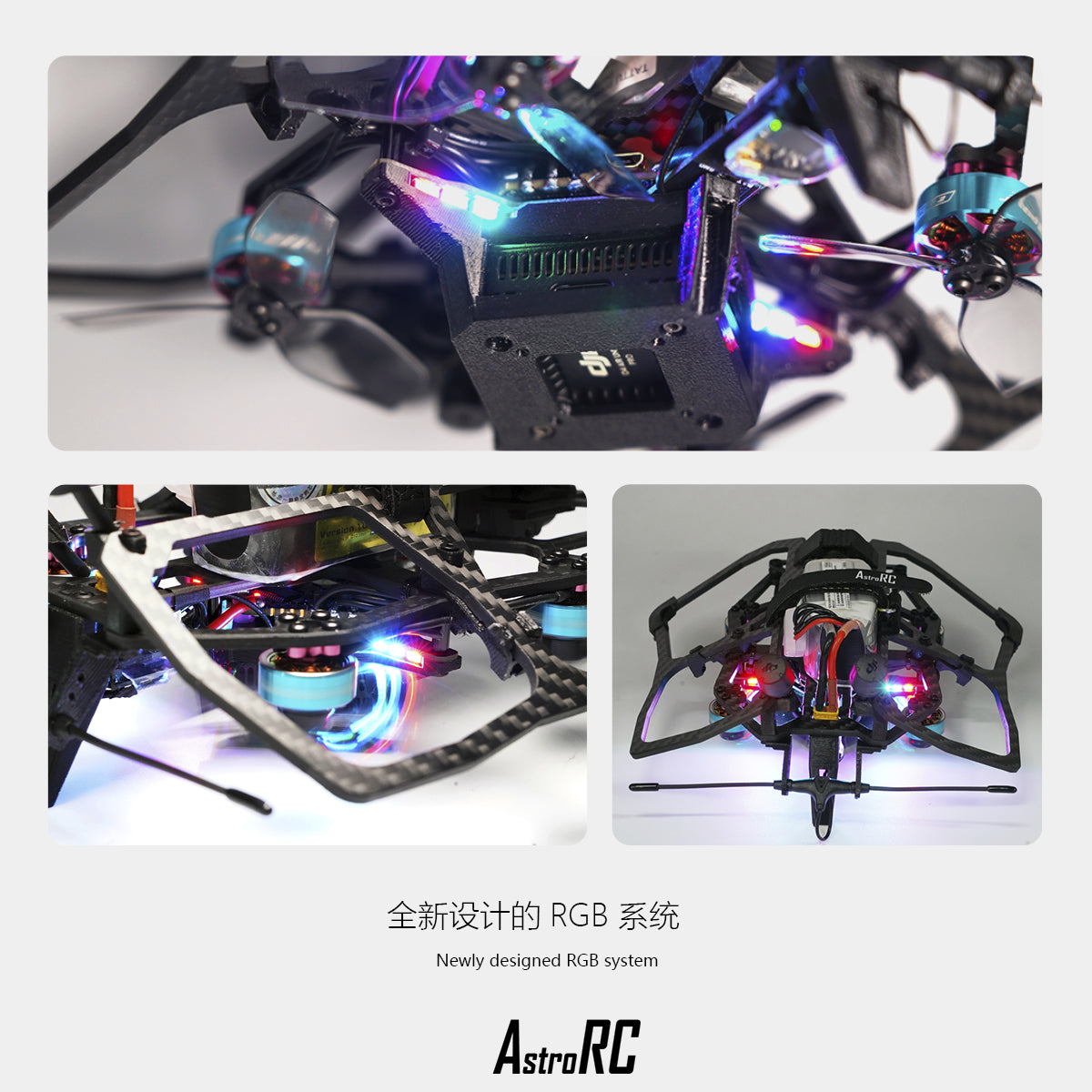

6. StarLoop LED Light Strip Mounting
   Built-in LED channels inside the prop guard support COB LED strips for a more personalized and visually striking flight experience.

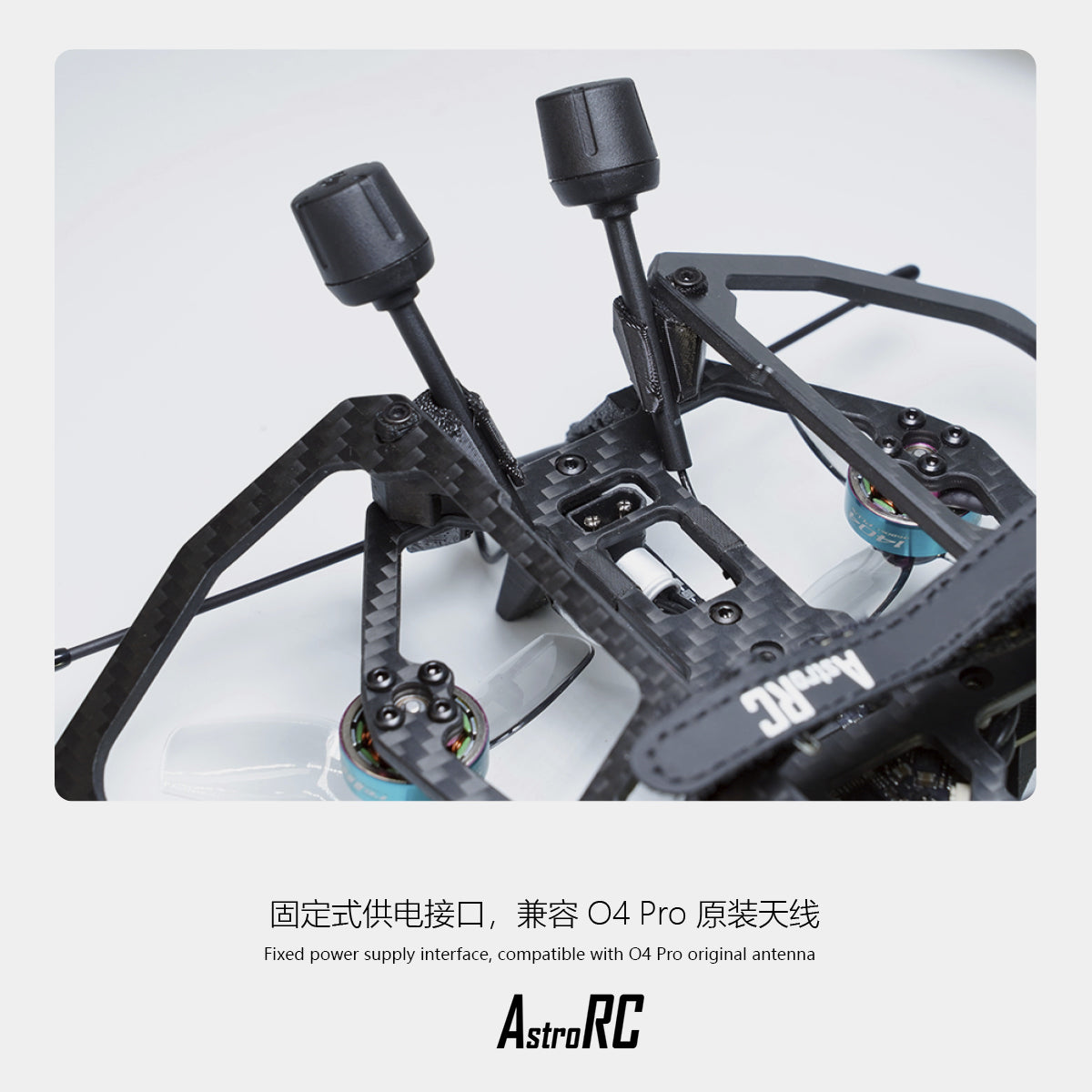

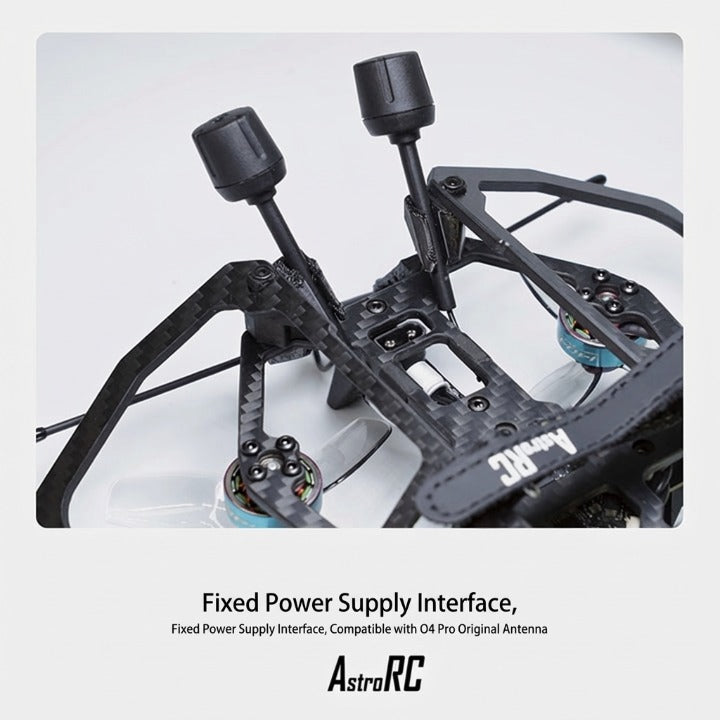

7. Multiple Antenna Mounting Options
   Supports single antenna, dual antenna, SMA antenna, as well as small and large T-type antennas.

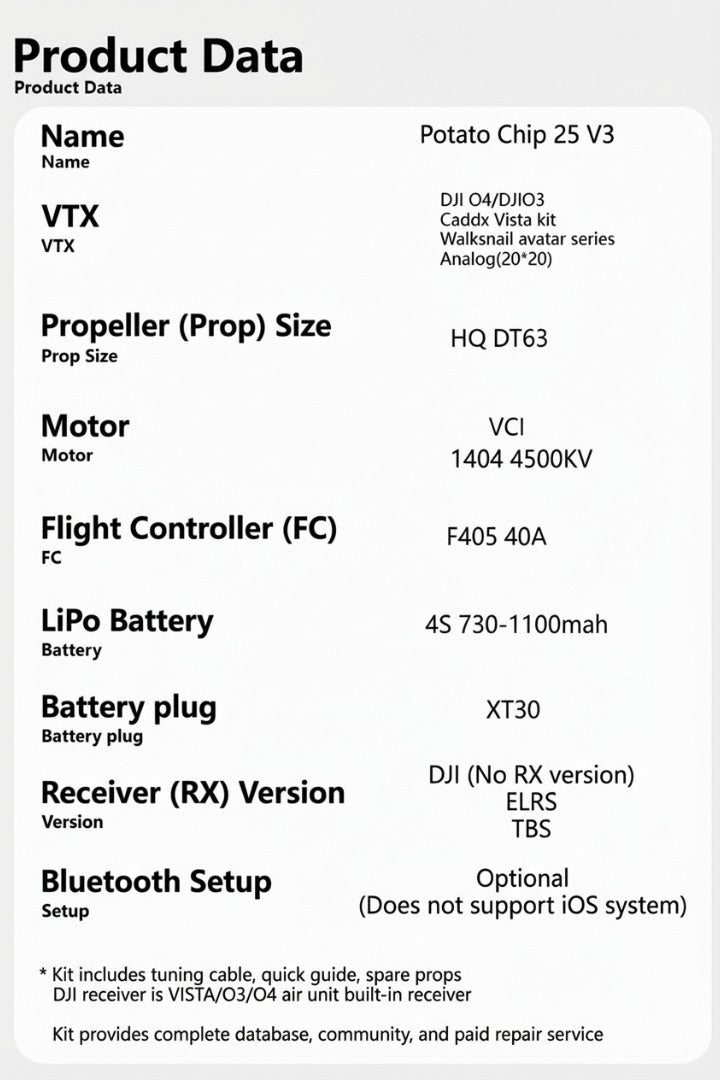

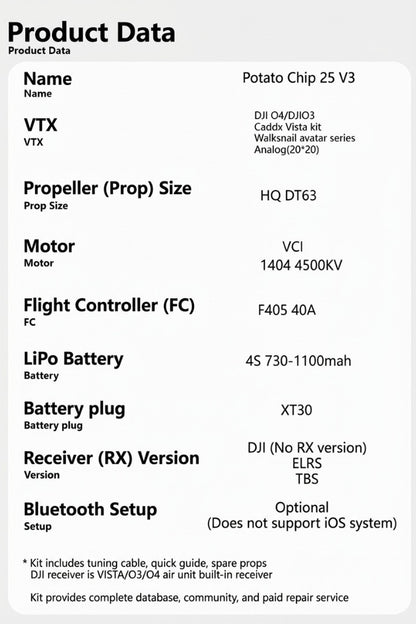

StarLoop 25 V3 — Specifications

• Model: StarLoop 25 V3

• Wheelbase: 109 mm

• Mounting Holes: 25.5 × 25.5 mm

• Battery Connector: XT30 (4S)

Flight Controller: JHEF405 AIO

• MCU: STM32F405

• IMU: ICM42688-P

• ESC: 40A Bluejay, 48 kHz

• Blackbox: 8 MB

Motors: VCI 1404, 4500 KV
Propellers: 2.5" HQ DT63
Receiver Options: ELRS 2.4 GHz / None
Video System Options: DJI O4 Pro / DJI O4 / None
GPS: BZ121 / None

Weight: 170 – 185 g
Recommended Battery: 4S 650–850 mAh
Flight Time: 5 – 7 minutes (actual time may vary depending on flight intensity)
