2.5inch frame | Carbonfly 25 V3 2.5inch Cinewhoop Frame only

2.5inch frame | Carbonfly 25 V3 2.5inch Cinewhoop Frame only

Regular price $25.00 USD
Regular price $32.00 USD Sale price $25.00 USD
Sale Sold out
TPU color
Combo

Frame Only

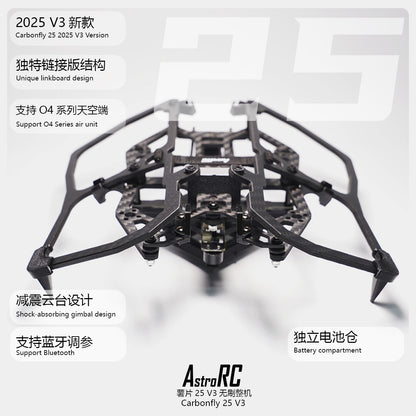

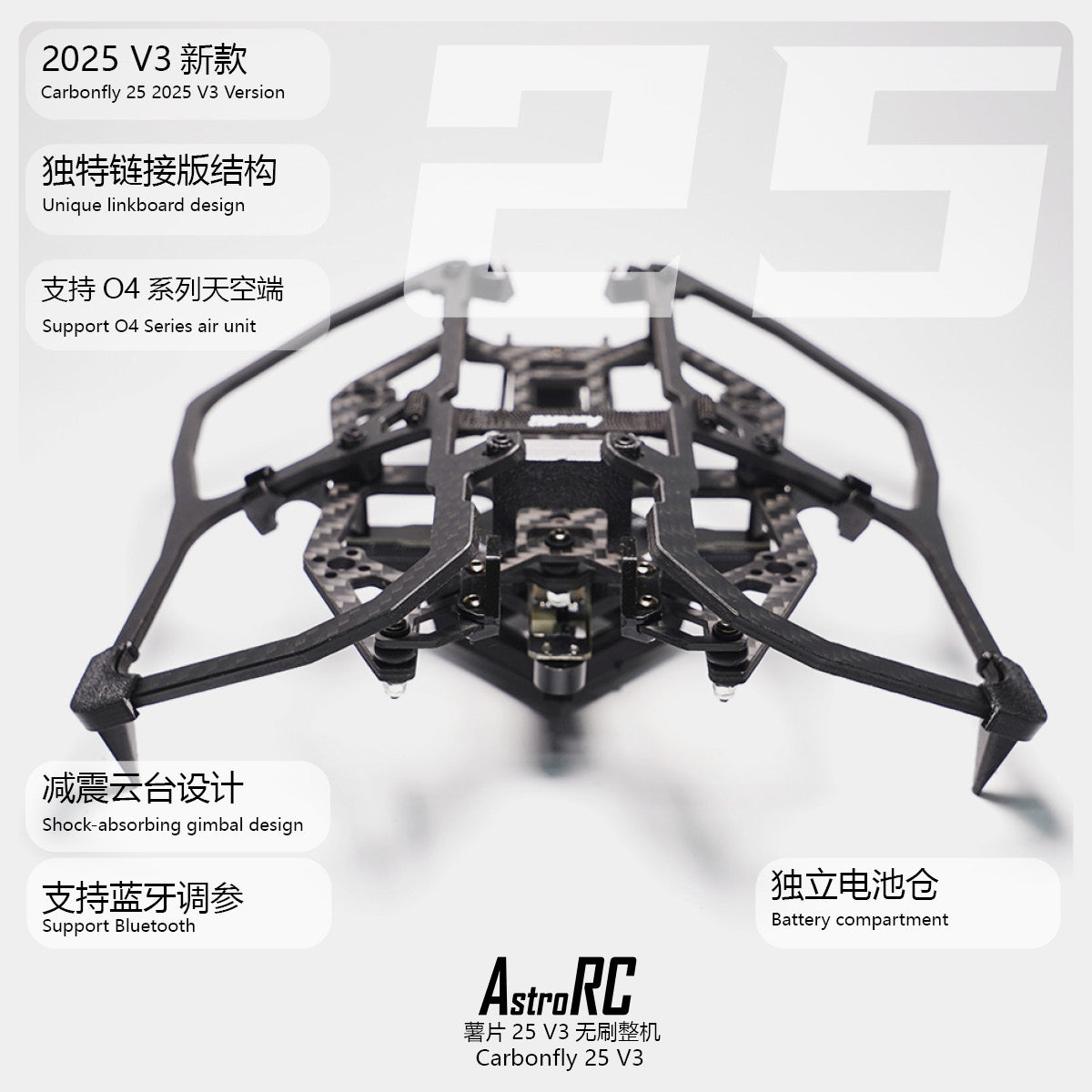

Further optimized CARBONFLY structure

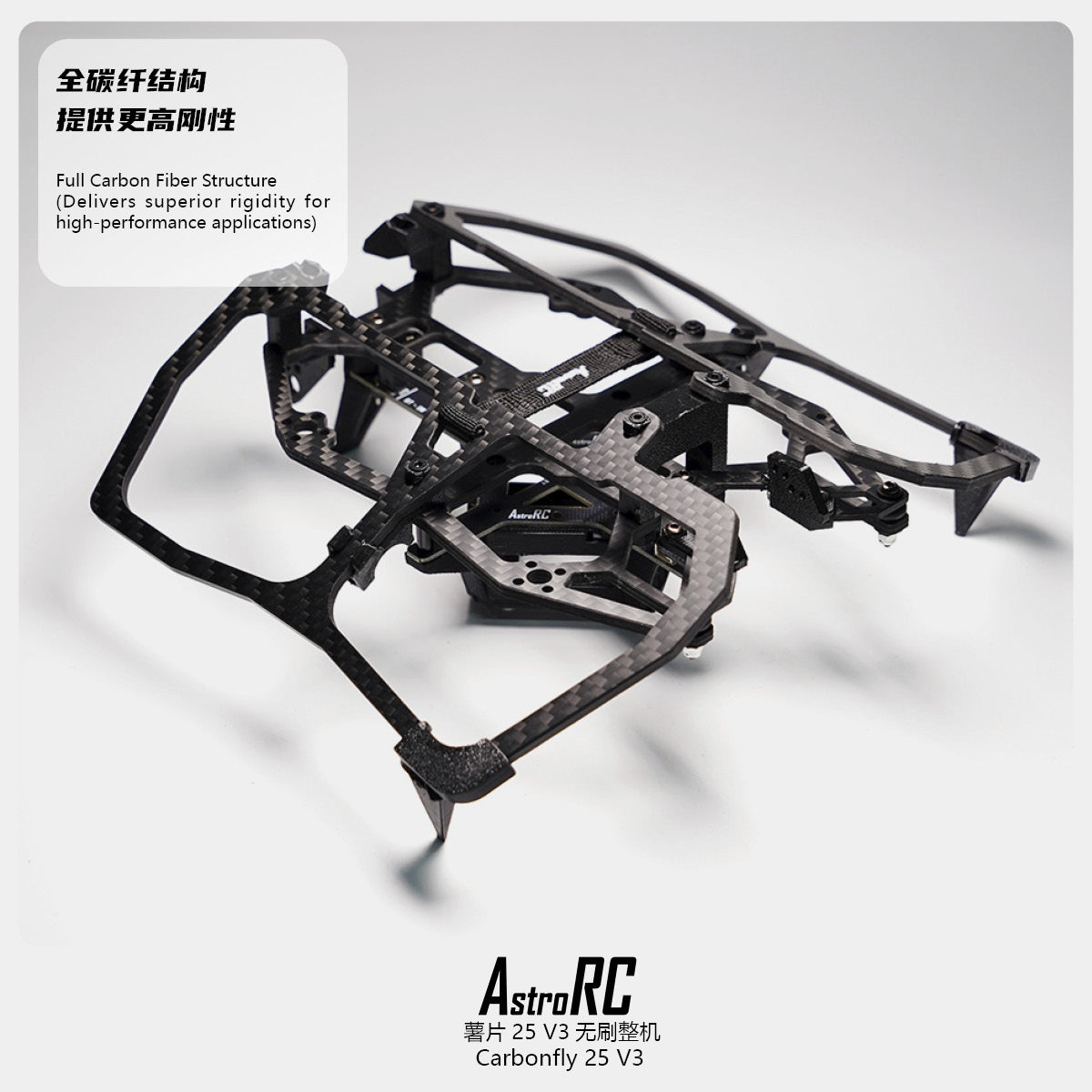

Better overall rigidity, lower weight, higher compatibility and playability



Compatible with single-axis gimbal systems under development

Inherited all design features of CarbonFly 20

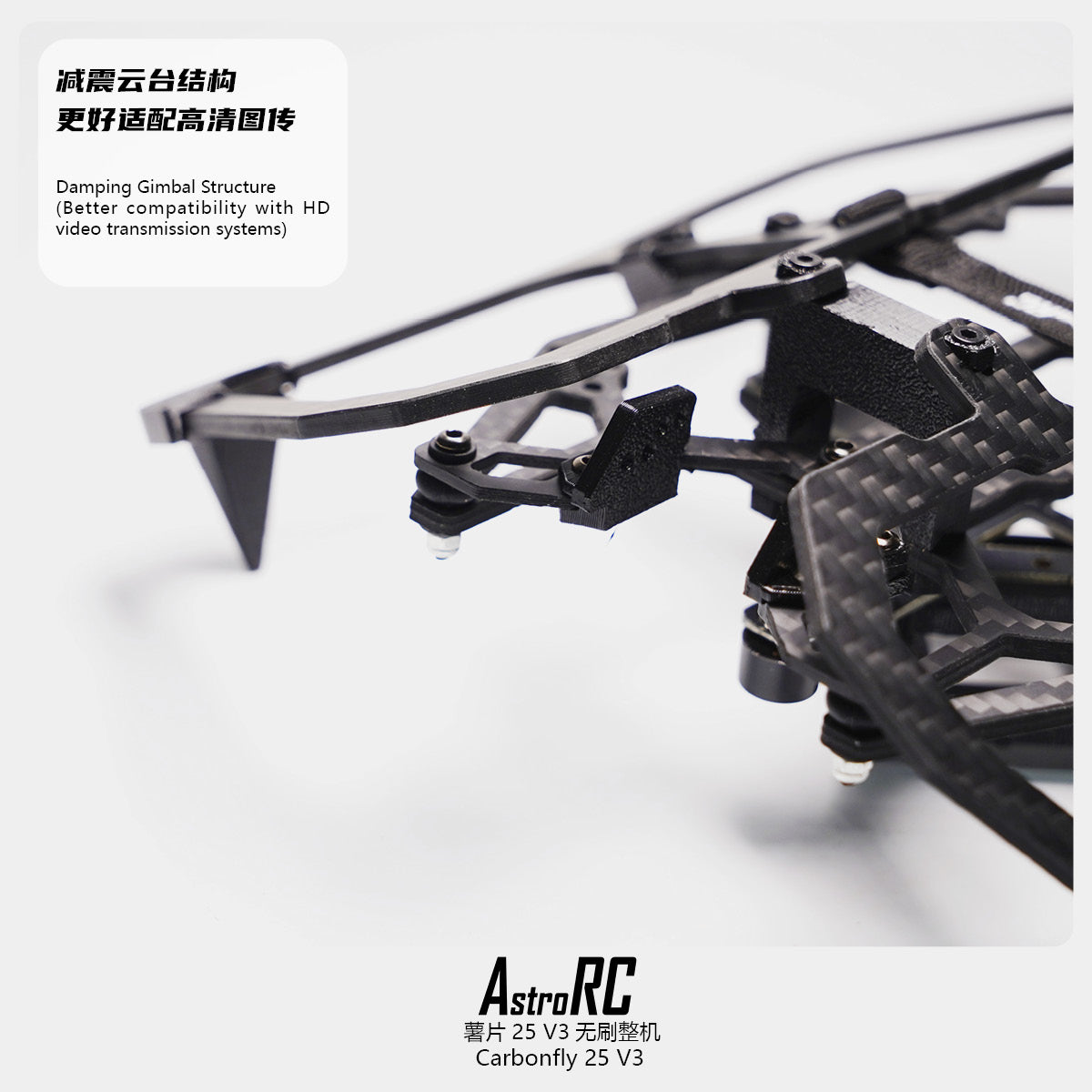

1:3-point O3 lens vibration reduction

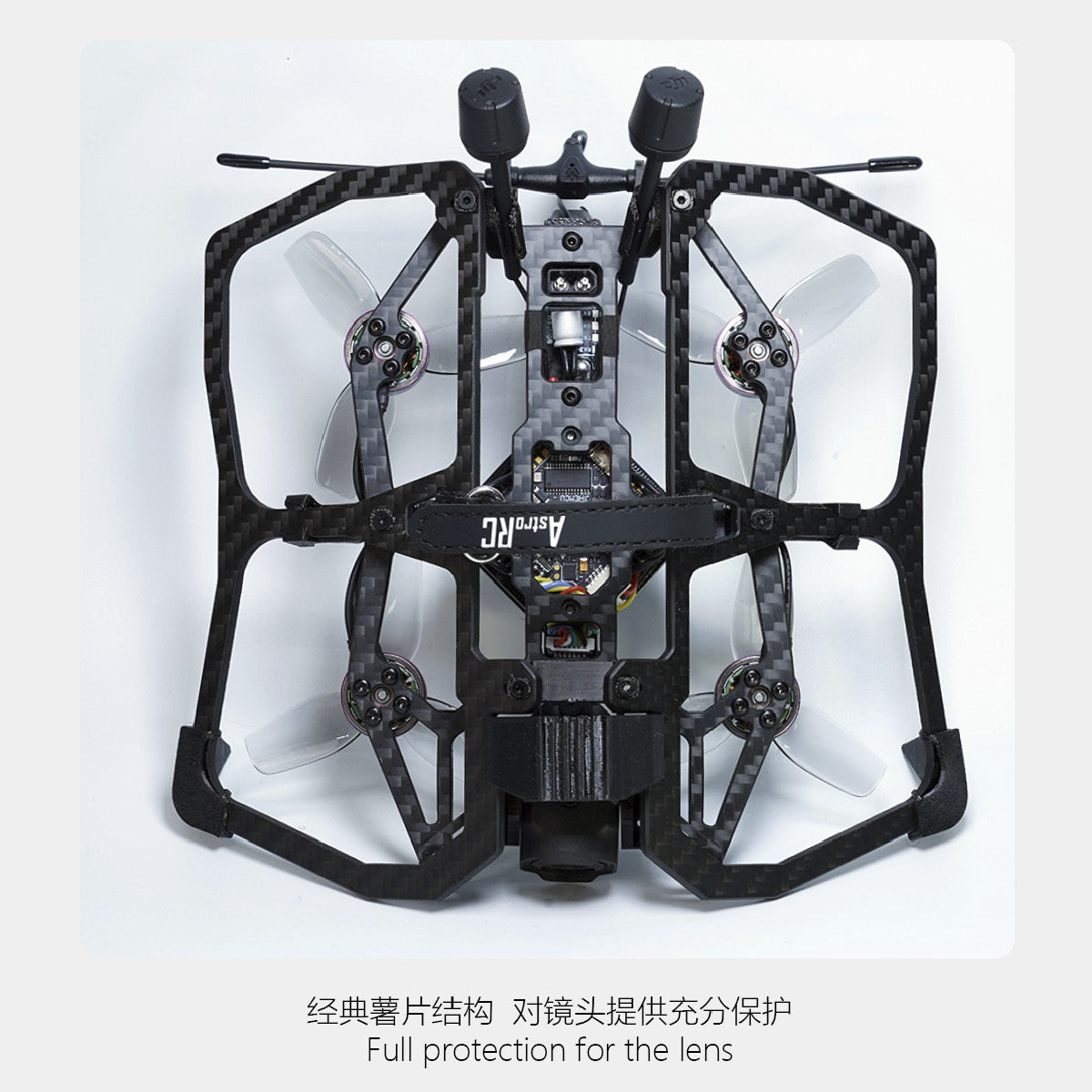

2: Good protection of the lens

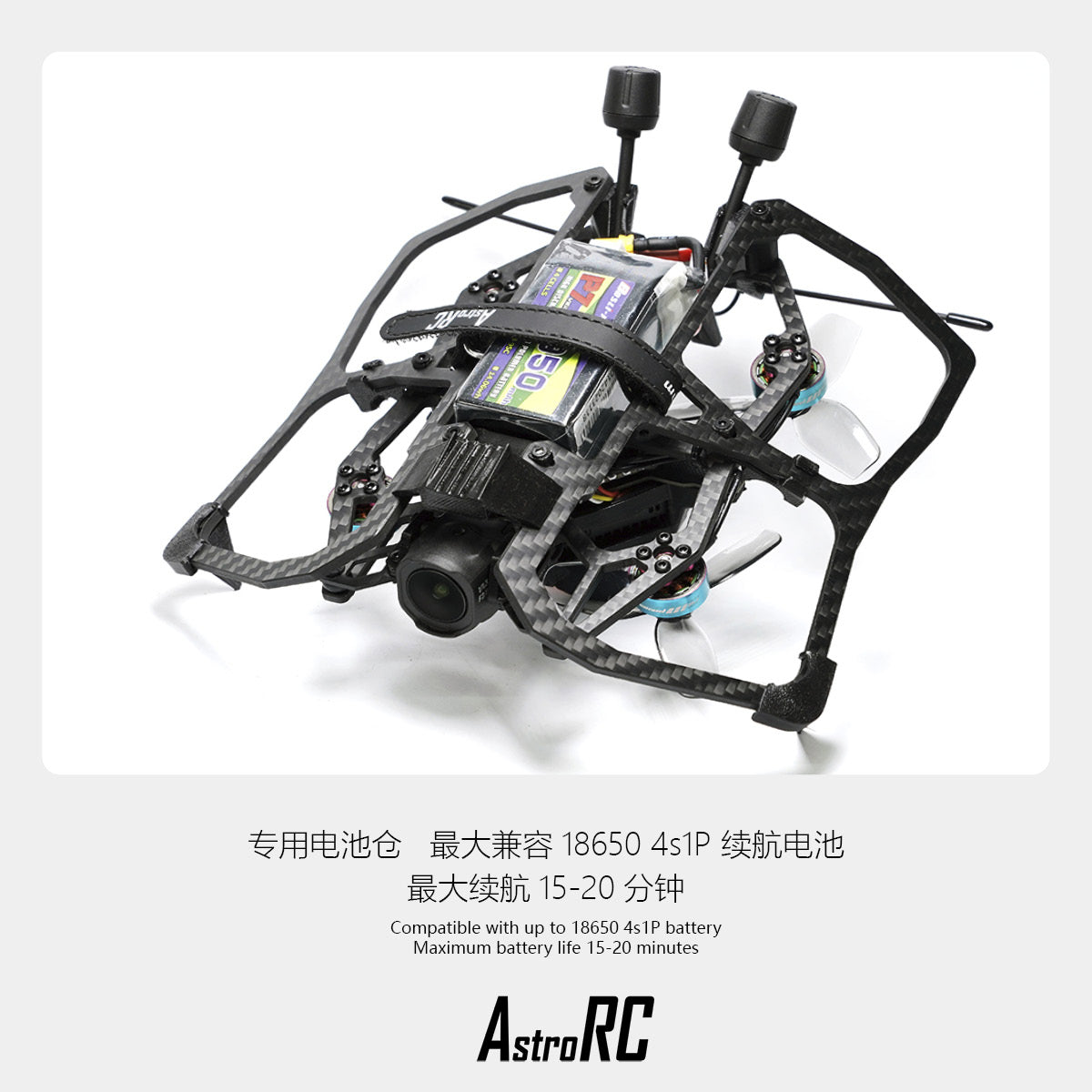

3: Dedicated battery compartment

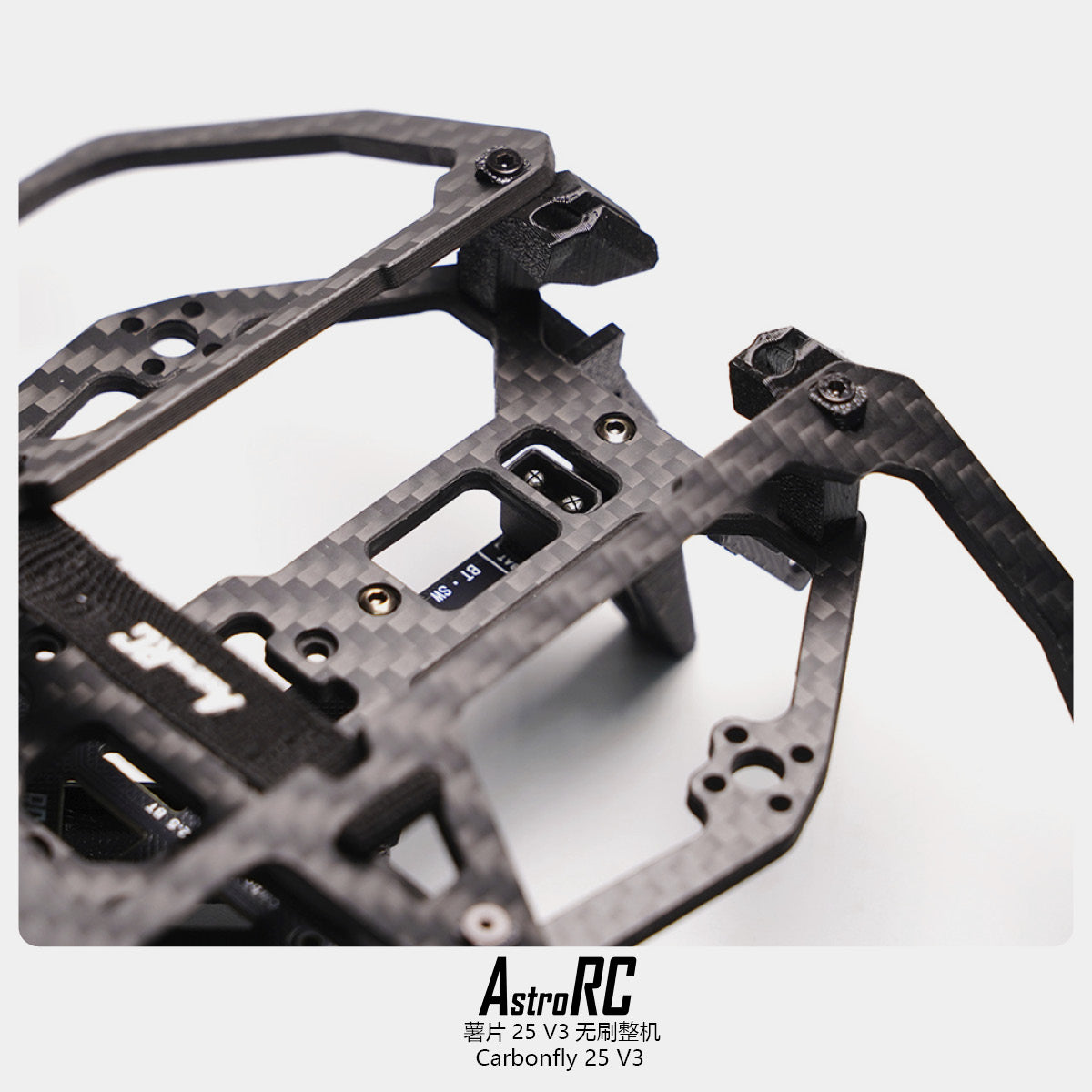

4: Highly acclaimed AstroRC link-plate structure
Carbonfly range of products in different sizes
Compatible with a variety of different battery sizes
Only supports 4S

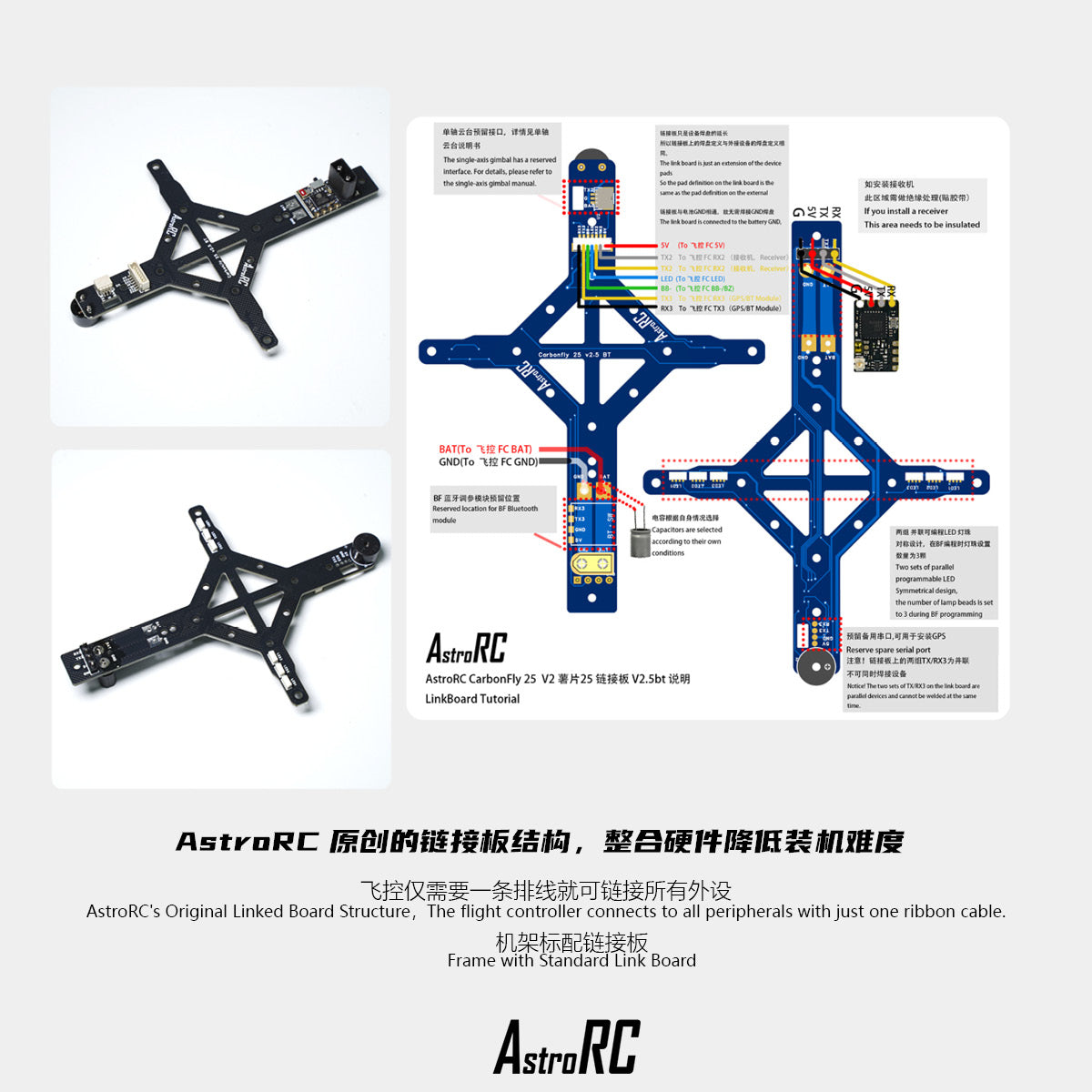

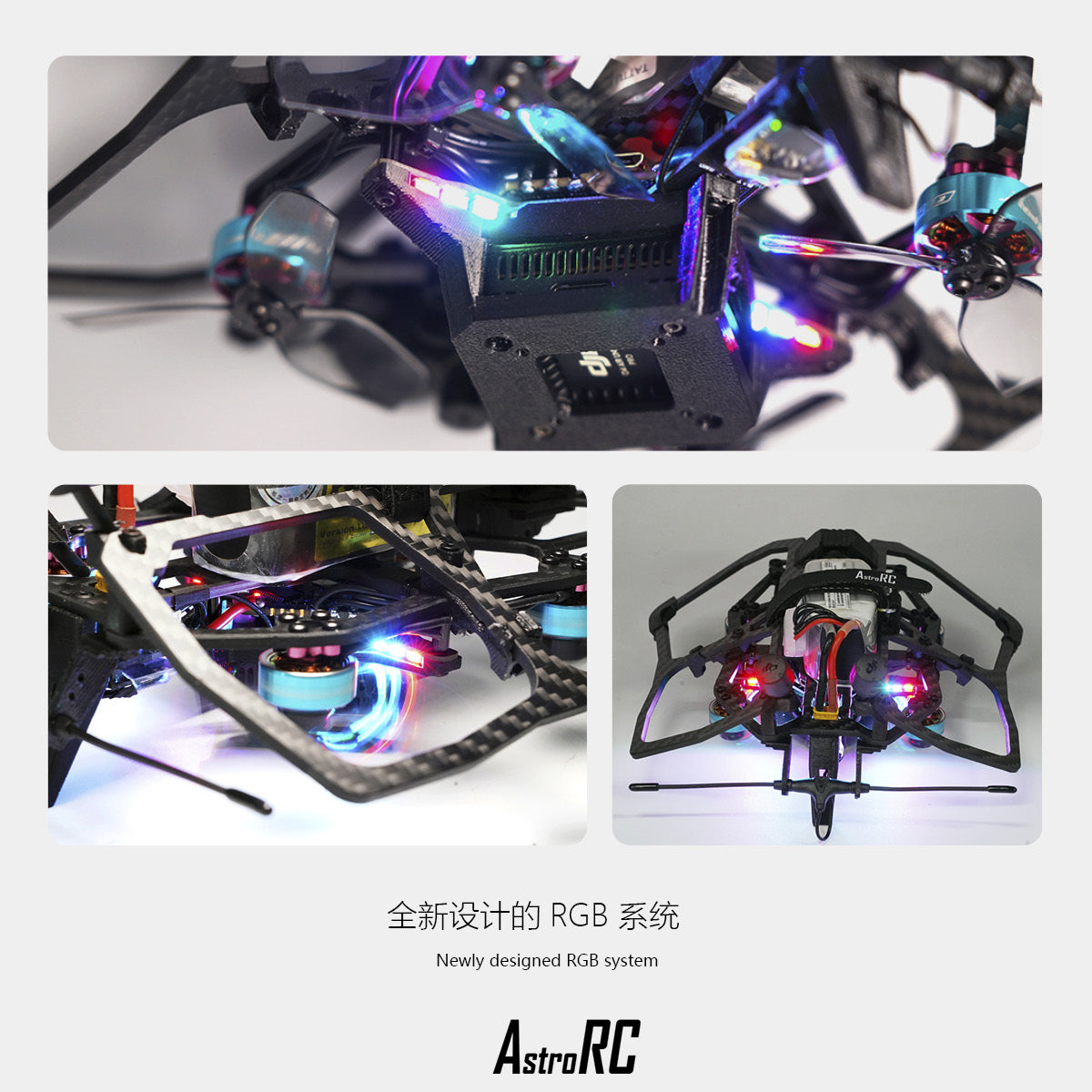

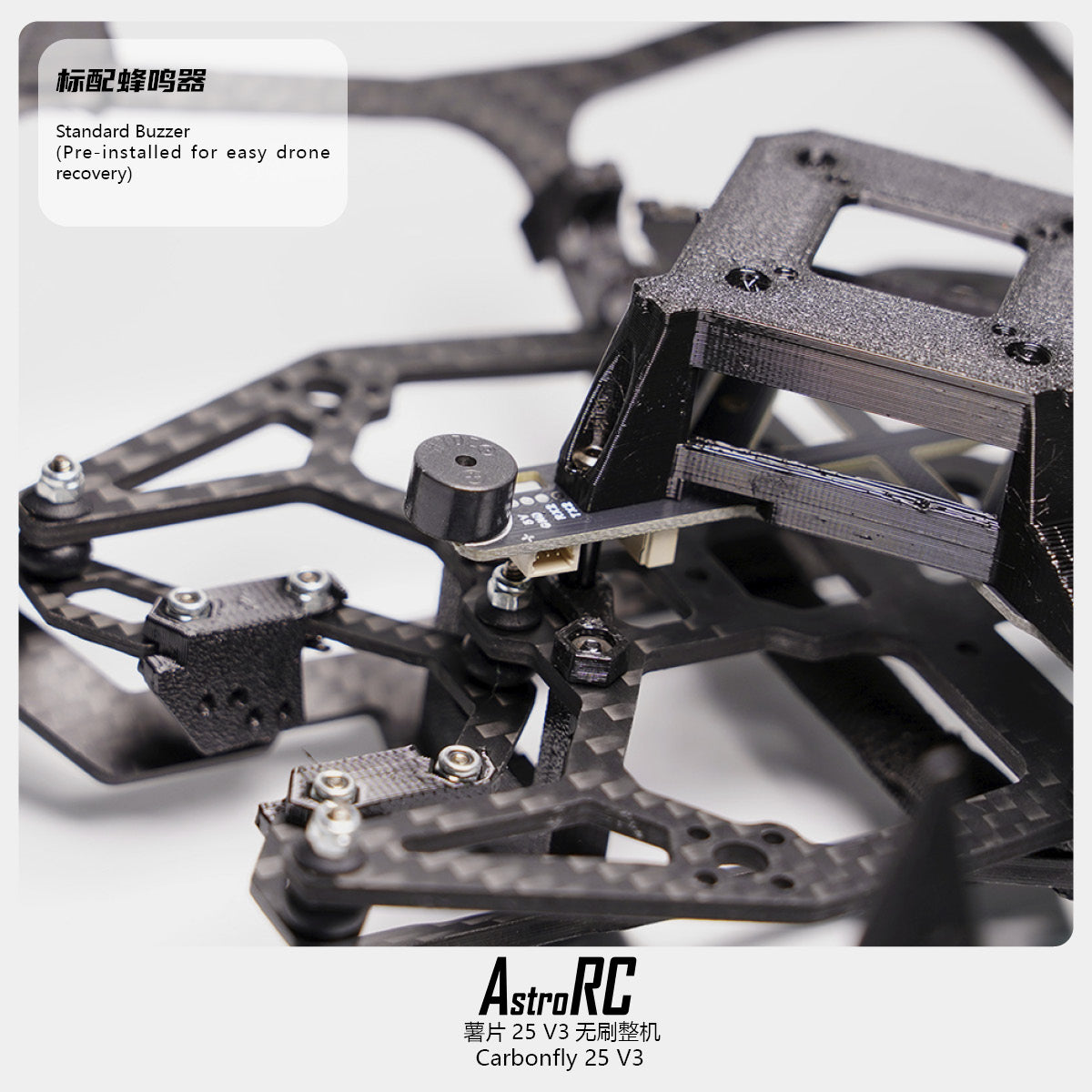

Further optimized link board system, onboard buzzer, 6 programmable LEDs and receiver mounting positions. All onboard interfaces only need one 5Pin socket to connect to the AIO.



Equipped with a 4S battery within 80 grams, using the O3 system and 1404 motor, the total weight can easily be less than 250g
 The world's first single-axis gimbal system for traversing machines will be launched in the first quarter of 2024

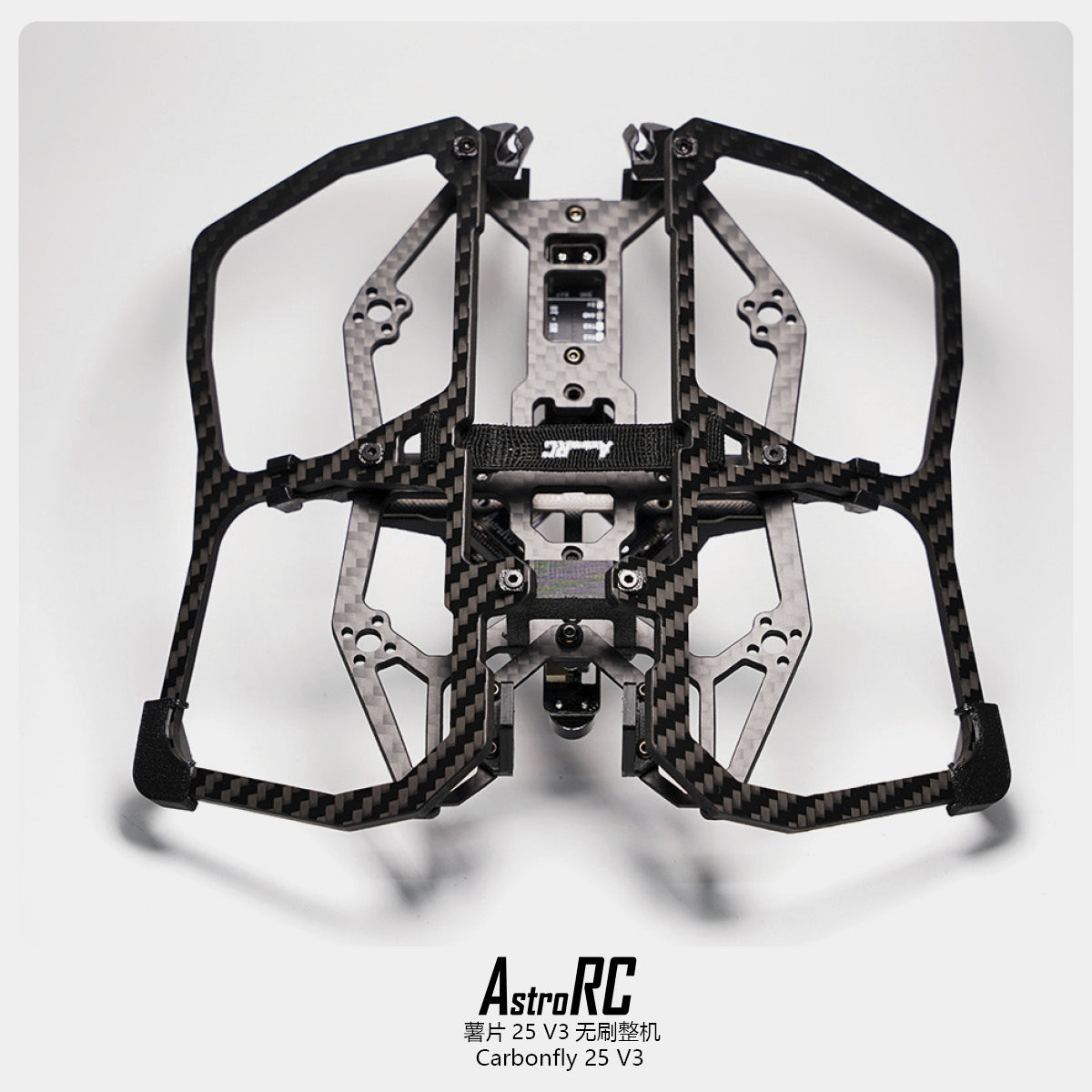

CarbonFly 25 Frame ready for upgrades
Tribute to the

Harrier jump jet

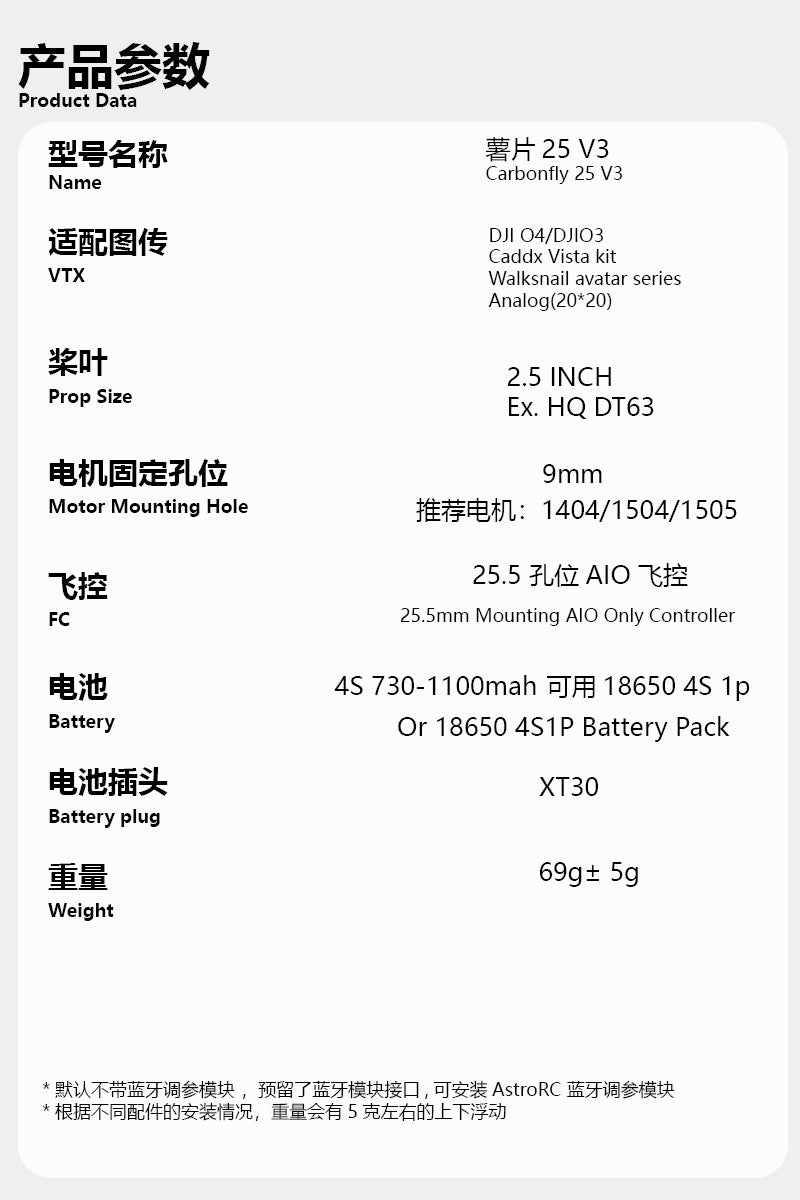

Main Plate:                           2.5mm

Bottom Plate:                        2.0mm

FC Mounting Hole:               25.5mm x 25.5mm AIO only

VTX Mounting Hole:             25.5mm x 25.5mm(dji O3)

Motor Mounting Hole:         9mm x 9mm

FPV Camera Spacing :          19mm / 20mm

Suitable propeller size:         2.5 inch propeller

Weight: 59g (Carbon Version )
