Kind Reminder: Due to the high level of PCB integration and relatively small soldering pads, we advise caution for those who lack soldering skills, have never used a soldering iron, are absolute beginners, or have no experience with Betaflight. As an open-source firmware product, we do not provide step-by-step technical support.

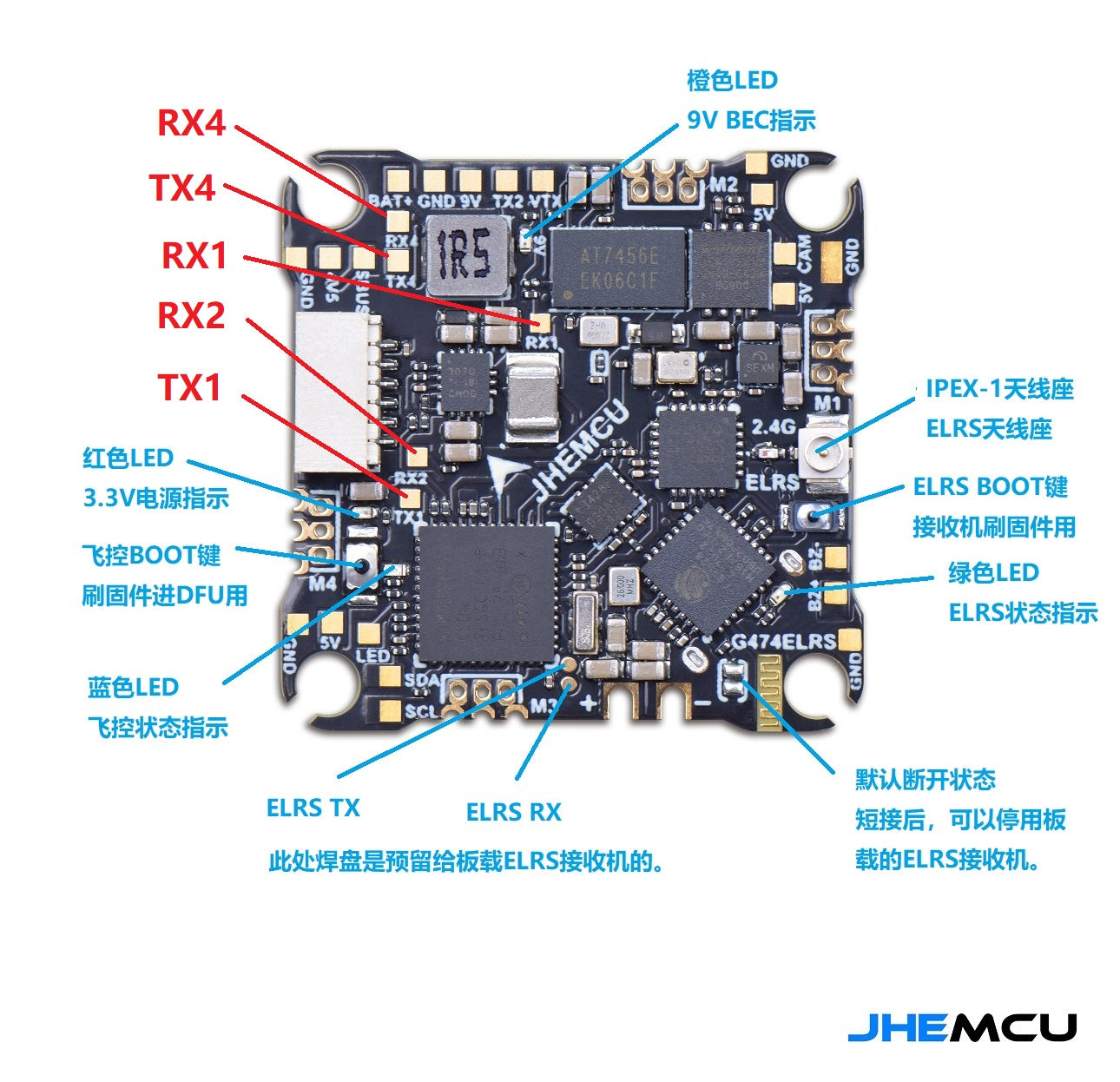

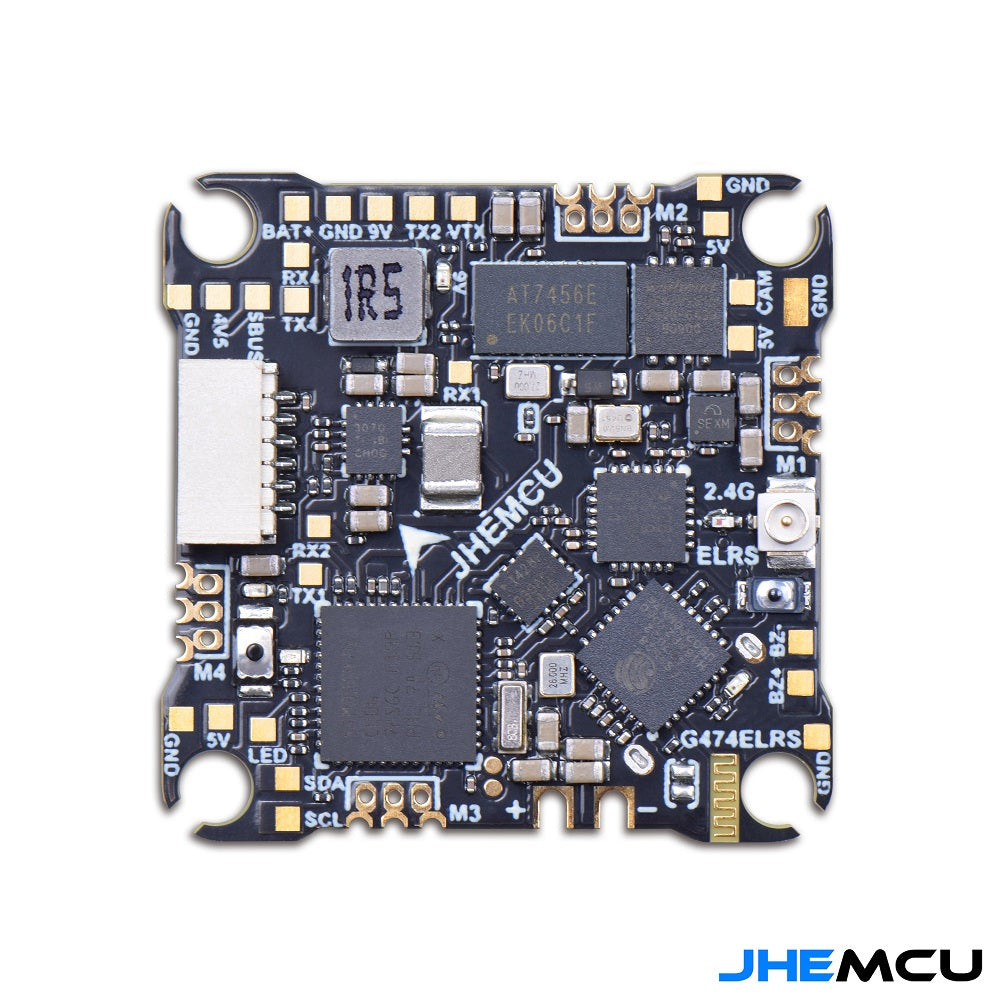

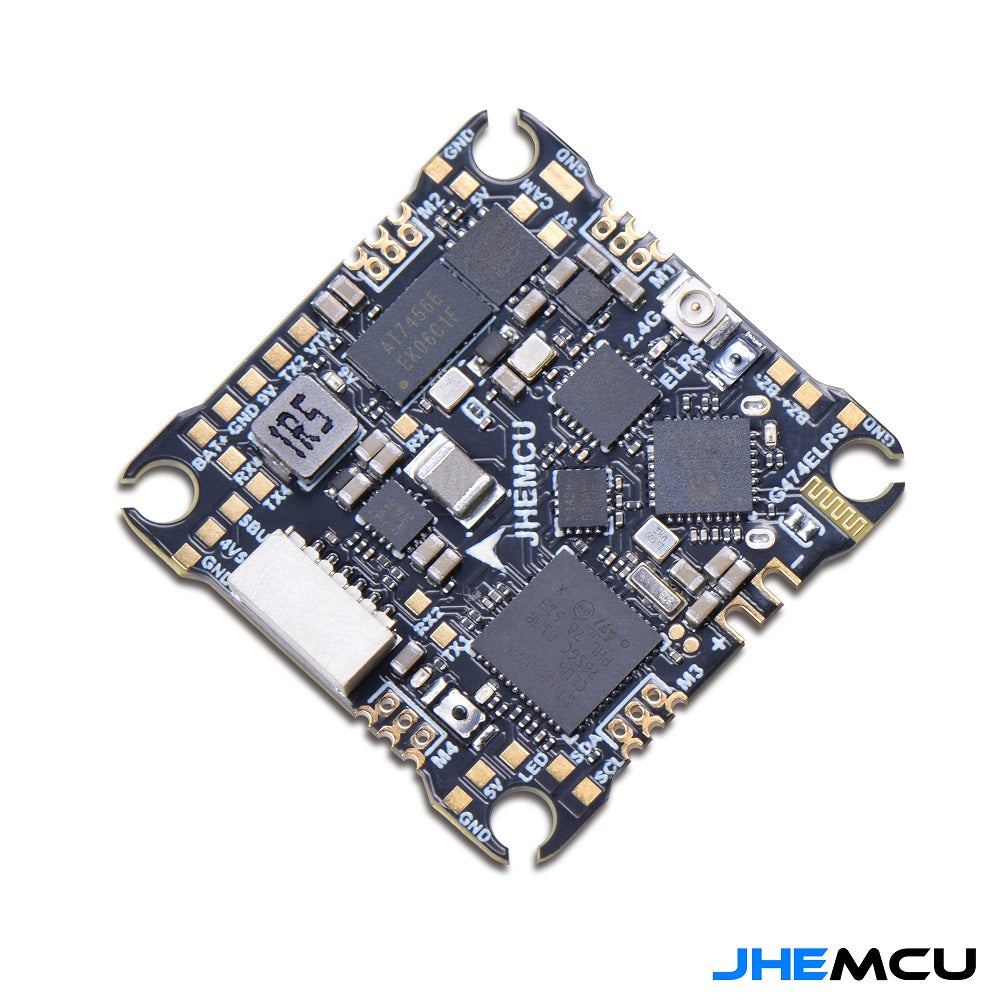

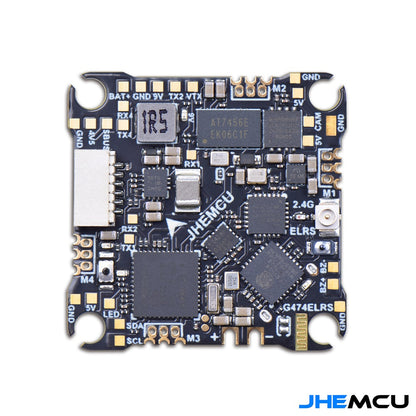

The JHEMCU G474ELRS flight controller is equipped with an STM32G474 processor running at 170MHz and an ICM42688-P gyro sensor. It integrates OSD and features a built-in 5V/1.5A BEC buck-boost circuit and a 9V/2A BEC boost circuit, providing stable 9V output for the VTX connector. When using HD air units on 2S, there will be no black screen issue. The board has an integrated, independent ELRS 2.4G receiver and supports a 1-2S 12A 4-in-1 brushless ESC.

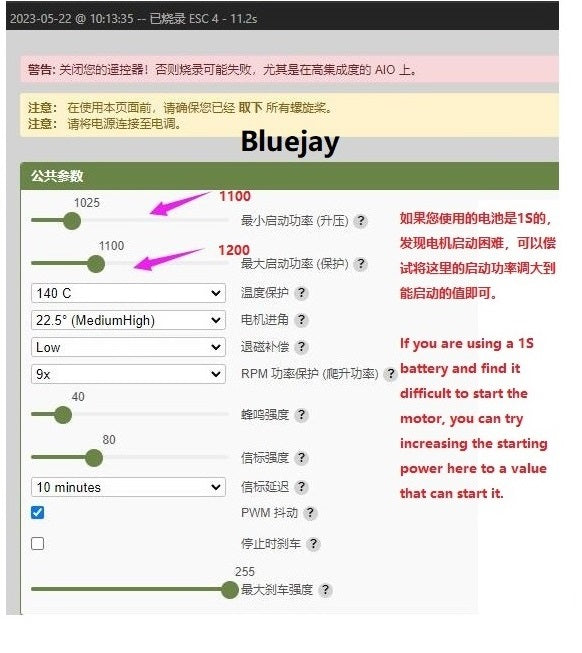

This board includes an 8MB Blackbox and does not include a barometer. If using 1S power supply and experiencing difficulties with motor startup, please increase the motor startup power value until proper startup is achieved.

Technical Specifications:

Model: JHEMCU G474ELRS

MCU: STM32G474CE (170MHz, 512KB)

Gyro: ICM-42688-P

Barometer: None

OSD Chip: AT7456E

Blackbox: 8MB

LED Programming: Supported

Buzzer: Supported

Input Voltage: 1-2S

I2C Port: Supported

BEC: 5V / 1.5A
